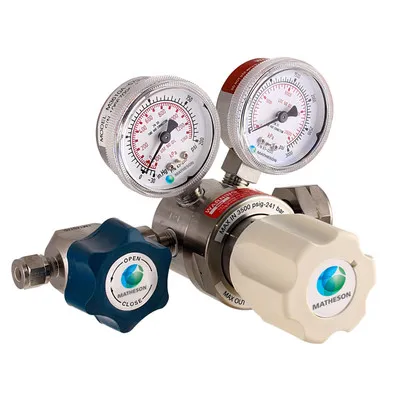

3610A-S Modified Single-Stage with Tied Diaphragm Regulator – SS

A high-purity regulator designed for analytical applications using corrosive, toxic, or pyrophoric gases.

Applications

• Supply of corrosive, toxic, or pyrophoric gases where a positive closure of the regulator is desired.
• Supply of corrosive/toxic gases to semiconductor manufacturing processes.

Design Features

• High-purity 316L stainless steel barstock body
• High-purity 316 stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2” inlet and delivery pressure gauges
• Tied seat design helps to ensure regulator closure
• Equipped with outlet diaphragm valve
• 1/4” compression tube outlet connection
• Porous metal filter protects seat from contamination
• Panel mountable from rear with two threaded holes

*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply. (NI) for 1/4″ FNPT inlet

Materials of Construction

• Gauges: 316 stainless steel
• Body: 316L stainless steel
• Bonnet: 316 stainless steel
• Diaphragm: 316 stainless steel
• Seat: PCTFE
• Seals: Metal to metal

Specifications

• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Typical Max Flow Rate (100 psi del press): 3 SCFM-N2 (85 SLPM)
• Flow Capacity (Cv): 0.09
• Operating Temperature: -40°F to 160°F (-40°C to 71°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 2 High, 2 Low

Options

No Lube
A small amount of polychlorotrifluoroethylene is added to the threads to facilitate assembly. For ECD, MS or AED applications where method detection limits are sub-ppm, it is recommended to use a No Lube (-NL) model.

Cross Purge
• Eliminates the escape of hazardous gases when changing cylinders
• Reduces danger of contamination from atmospheric moisture and oxygen
• Minimizes the amount of gas lost during cylinder changes
• used throughout
• All stainless steel construction ()

Flow Curves

Instructions

Drawing
