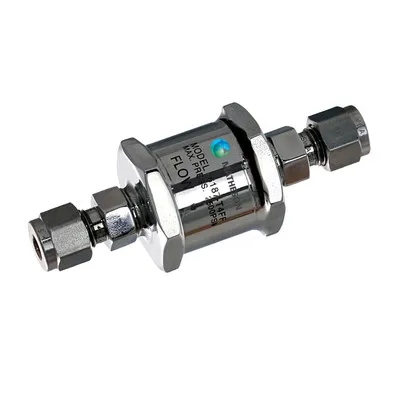

6187 Series High-Pressure Filter – 0.2 micron

The 6187 Series is a high pressure gas filter that employs a fine cloth filter media of microporous fiberglass supported between a wire mesh disc and high pressure rated screen. The unit is constructed of all welded 316 stainless steel housing to provide maximum purity. The support screen prevents the filter element from collapsing in the event of a sudden impact of gas at 2500 psi (maximum).

Applications

Typically, these filters function as “prefilters” for a high purity gas delivery line. Installation is usually between the source cylinder and a regulator, affording an extra measure of filtration protection. While most Matheson regulators are supplied with a built-in internal filter at the inlet side, the 6187 Series with 0.2 micron efficiency provides longer service life to the regulator and reduced particulate in the gas stream delivered to the point-of-use. The filter needs to be replaced when saturated.

Materials of Construction

• Body: 316 Stainless Steel
• Filter Elements: Fiberglass
• Filter Screens: 316 Stainless Steel

Specifications

• Maximum Operating Pressure: 2500 psi
• Temperature Rating: 350ºF (176ºC) max.
• Maximum Flow Rate: 20 SLPM (5 psi pressure differential)
• Pore Size: 0.2 micron
