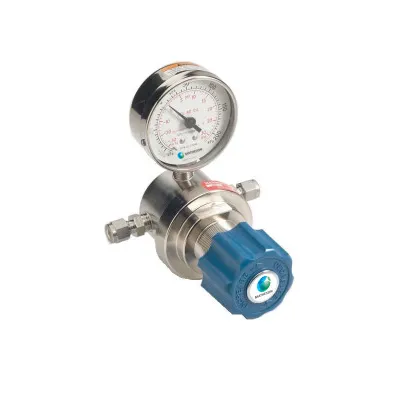

High-purity stainless steel line regulator for absolute pressure applications.
• Corrosive or high purity absolute pressure applications (delivery pressure from sub-atmospheric to 15 psi).
• High-purity 316 stainless steel body
• 316 stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2” delivery pressure gauge
• 1/4” compression inlet/outlet connection
• Panel mountable
| Part Number | Delivery Pressure Range |
Delivery Pressure Gauge |
| SEQ3494 | 28” Hg vac-15 psig | 30” Hg vac-30 psig |
• Body: 316 stainless steel barstock
• Bonnet: Nickel plated brass
• Diaphragm: 316 stainless steel
• Seat: PTFE
• Seals: Metal to metal
• Spring (Bias): 316 stainless steel
• Spring (Main Valve): Elgiloy
• Inlet Pressure: Atmospheric to 400 psi (2760 kPa)
• Typical Max Flow Rate (10 psi del press): 50 SLPM-N2
• Outlet Pressure: -28 inch Hg to 15 psi (103 kPa)
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Porting Configuration: 1 High, 2 Low
• Porting Regulator Body: 1/4″ FNPT
• Flow Direction: Right to Left
• Inlet/Outlet Fitting: 1/4″ Compression
• Flow Capacity (Cv): 0.24
| Mounting Options | |||
| Mounting Bracket for Single Stage & Line Regulators Two 10-32 screws are needed to mount the back of the regulator to this bracket. |
|||
| Mounting Bracket for Regulators Mounting Nuts are also needed (see below). The regulator knob will have to be removed in order to mount on this bracket. |
|||
| Mounting Nuts These nuts can be used either with the above bracket or for mounting in a panel. |
