Availability: 10 in stock

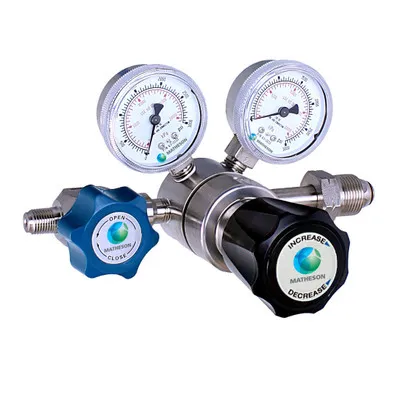

High-purity Stainless Steel regulators designed for delivery pressures up to 2500 psi. Seal material choices are Viton/Teflon or EPR/Vespel. Hydrogen sulfide mixes need to have the EPR/Vespel seals while hydrogen chloride mixtures need to have the Viton/Teflon seals. Viton/Teflon is good for most other gases.
• Applications requiring delivery pressures up to 2500 psi.
• Delivery of gas to manufacturing processes, charging of systems, purging.
• High-purity Stainless Steel body
• 316 stainless steel piston
• 2” inlet and delivery pressure gauges
• Equipped with outlet needle valve
• 1/4” MNPT outlet connection
• Porous metal filter protects seat from contamination
• Panel mountable
| Part Number* | Max Delivery Pressure |
Delivery Pressure Gauge |
Cylinder Pressure Gauge |
Seal Materials |
| SEQ3030SECGA | 1500 psi | 0-3000 psi | 0-4000 psi | EPR/Vespel |
| SEQ3030SVCGA | 1500 psi | 0-3000 psi | 0-4000 psi | Viton/Teflon |
| SEQ3040SECGA | 2500 psi | 0-3000 psi | 0-4000 psi | EPR/Vespel |
| SEQ3040SVCGA | 2500 psi | 0-3000 psi | 0-4000 psi | Viton/Teflon |
*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply. (NI) for 1/4″ FNPT inlet
• Gauges: Stainless Steel
• Body: Stainless Steel
• Bonnet: Nickel plated brass
• Piston: 316 stainless steel
• Maximum Inlet Pressure: 3000 psi (24,100 kPa)
• Maximum Flow Rate (At 2500 psi, N2):
Model 3030S: 4600 SCFH (2170 SLPM)
Model 3040S: 4600 SCFH (2170 SLPM)
• Flow Capacity (Cv): 0.06
• Operating Temperature: -15°F to 165°F (-26°C to 74°C)
• Porting (Regulator Body): 1/4”NPT Female
• Porting Configuration: 2 High, 2 Low
| Mounting Options | |||
| Mounting Bracket for Regulators Mounting Nuts are also needed (see below). The regulator knob will have to be removed in order to mount on this bracket. |
|||
| Mounting Nuts These nuts can be used either with the above bracket or for mounting in a panel. |
|||
| 54 Series Protocol Station This stainless steel manifold is designed to provide a safe, reliable way of wall-mounting a cylinder regulator. Manifolds are provided a durable stainless steel bracket, stainless steel flex hose (3 ft std.), and a CGA connection with integral check valve. |
