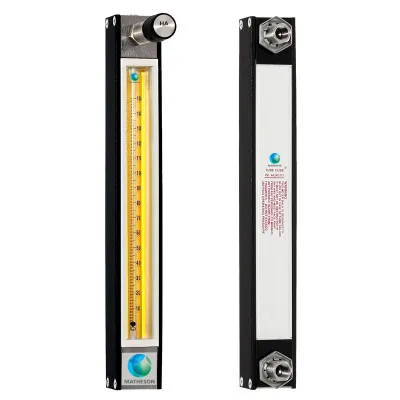

ME16D101E300 Special FM-1050 Flowmeter

Special FM-1050 Rotameter. Stainless steel construction with Teflon seals.

Note: Image not actual Rotameter.

Valve Option

• High Accuracy (HA) valve on outlet

Design Features

• Precision tapered, fluted metering tube
• Low pressure drop for increased flow rates at low feed pressures

Materials of Construction

• Wetted End Blocks, Fittings and Internal Parts: Stainless steel
• Seal Materials: Teflon
• Metering Tube: Borosilicate glass
• Float Materials: Glass
• Scale: Ceramic ink on glass tube

Specifications

• Pressure Rating: 250 psig maximum
• Temperature Rating: 250°F maximum
• Accuracy: ±5% of full scale flow rate
• Repeatability: 0.25% of scale reading
• Range: 10 to 1, i.e., 100% to 10% of full scale
• Flow Tube – E300 (38-840 sccm Air)
