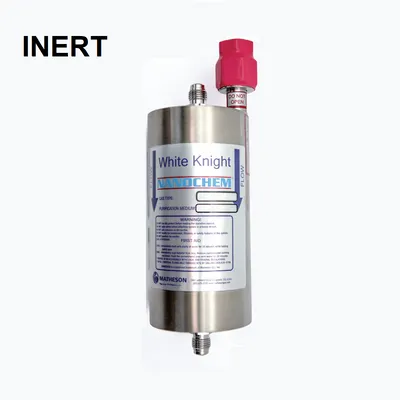

NANOCHEM® WK-Series (White Knight
) purifiers offer the highest lifetimes and the best impurity removal efficiencies in a very economical design. The in-line design enables a very compact footprint and allows drop-in replacement of competing hardware designs. The WK-Series is available in a a number of sizes from point-of-use applications to bulk purification.
• For point-of-use to bulk flow specialty gas purification
• Highest Lifetimes
• Best Impurity Removal Efficiencies – Removes critical contaminants to sub part-per-trillion levels
• Enhances manufacturing process economy and improves equipment performance
• Provides consistently high purity gas under fluctuating inlet impurity conditions
• Compact footprint; inline design
• Easy to install and operate
• No heating or cooling required
• Quick start up
• All metal parts, type 316L stainless steel, or Nickel 200
• Economical, low cost of ownership
| Part Number | Model Number | Isolation Valves |
Max Flow |
Pressure Drop* |
Max Pressure |
Inlet/Outlet Size** |
| UEQ 10600527001 | WK-75F-NP-OMX# | 10 slpm | < 1 psi | 1000 psi | 1/4″ | |
| UEQ 10600544016 | WK-300P-INX-PLUS | 75 slpm | TBD | 500 psi | 1/4″ | |
| UEQ 10600545016 | WK-300P-INX-PLUS-MN | X | ||||
| UEQ 10600532018 | WK-500P-INX-PLUS | 150 slpm | < 5 psi | 500 psi | 1/4″ | |
| UEQ 10600554016 | WK-500P-INX-PLUS-MN | X | ||||
| UEQ 10600546018 | WK-700P-INX-PLUS | 225 slpm | < 7 psi | 500 psi | 1/4″ | |
| UEQ 10600547016 | WK-700P-INX-PLUS-MN | X | ||||
| UEQ 10600533019 | WK-2500P-INX-PLUS | 500 slpm | < 4 psi | 500 psi | 1/4″ | |
| UEQ 10600534018 | WK-2500P-INX-PLUS-MN | X | ||||
| UEQ 10600555018 | WK-2500P-8-INX-PLUS | 500 slpm | < 4 psi | 500 psi | 1/2″ | |
| UEQ 10600556018 | WK-2500P-8-INX-PLUS-MN | X | ||||
| UEQ 10600548016 | WK-5000P-INX-PLUS | 800 slpm | < 4 psi | 500 psi | 1/2″ | |
| UEQ 10600549016 | WK-5000P-INX-PLUS-MN | X |
*Note: Pressure drop at max flow rate, tested in N2 at 90 psi inlet
**Inlet/Outlet is Face Seal – Male
#Note: The Model WK-75F-NP-OMX does not remove hydrocarbons
• Internal surface finish: < 15 µin Ra
• Media: , OMX
• Maximum operating temperature: 104°F (40°C)
• Inlet/Outlet: 1/4″ or 1/2″ Face Seal – Male
| Media | Impurities Removed |
| OMX |
<100 ppt H2O, O2, CO2 LDL |
| INX-Plus |
<100 ppt H2O, O2, CO2 LDL <0.2 ppb Hydrocarbons except CH4 <100 ppt Halocarbons except CF4 |
