Hose-to-Hose

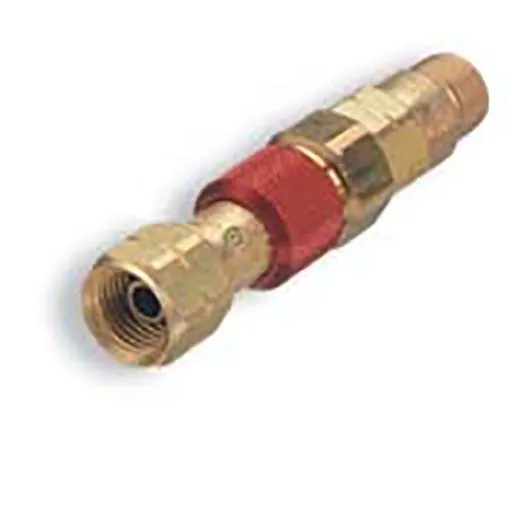

Western’s Quick Connects provide fast, reliable and positive connections and quick disconnections for torches, hoses and regulators.All models are color-coded for gas service for added safety (oxygen/green, fuel gas/red, inert gas/blue). Oxy/fuel gas models include integral reverse flow Check Valves. Quick Connects fit all B-size welding and cutting equipment.
Features
Brass construction provides long service life–cycle tested over 10,000 operations indicating a service life of 10 to12 years of comparable use
Non-interchangeable Oxygen and Fuel Gas connectors prevent accidental gas mixing
Instant closure on reverse flow Check Valves with total shutoff at only 10 oz. of back pressure
Exceed CGA flow specifications–1100 SCFH flow at 125 PSIG inlet pressure and 800 SCFH flow at 125 PSIG inlet pressure when 2 additional check valves are used in conjunction with the Quick Connects
Spring loaded locking mechanism responds to fingertip action and achieves a gas-tight connection
UL Listed
For inert gas models, demand valve on supply side creates a positive seal when fitting is not connected
Double seal socket connection on second seal provides added safety protection
Installation and operating instructions included
200 psig maximum operating pressure
