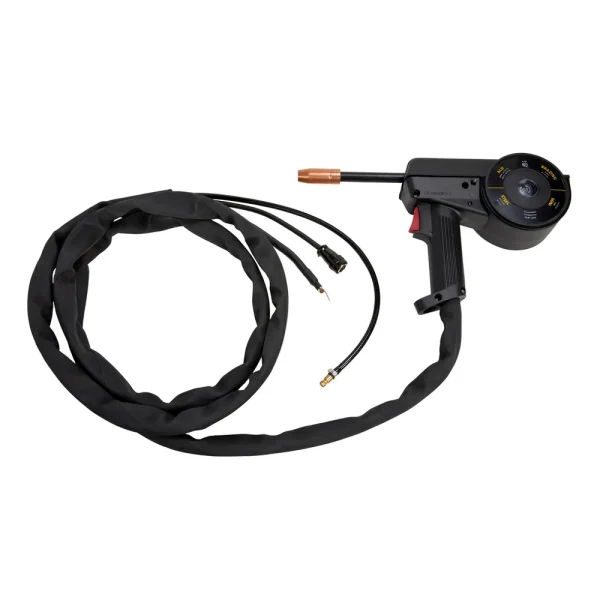

This Weldmark Spool gun has a max amperage rating of 140 amps at 60% duty cycle and uses 0.030-0.035 solid wire. It has a 10 ft cable hose assembly. Rated for MIG (GMAW) process for light work duty fabrication. Made in China.
Features
- 140 amp spool gun with 10 foot cable assembly
- Uses Tweco style 11 tips, 21 nozzles and 51 gas diffuser consumables
- 60% duty cycle rated
- Welds using .030 up to .035 wire sizes
- Can be used with both Weldmark MIG25-140 and MP200 welding machines
- For light duty fabrication jobs
Specifications
- Country of Origin : China
- Application : Light duty MIG welding fabrication
- Includes : Storage case
- Amperage Rating ~ Max : 140
- Cable|Hose Length : 10.0 ft
- Cable|Hose Length Metric : 3.00000 m
- Contact Tip Series : 11 Series
- Cooling Method : Air
- Duty Cycle Time : 10.0000
- Duty Cycle~CO2 : 60
- Freight Class : 70
- HTS Classification Number : 8515.90.20.00
- Industry Type : Light Fabrication|Maintenance and Repair
- Item Length Metric : 3.0000 mm
- Item Length US : 10.0000 in
- Member Supplier Source : IWDC Distribution Centers
- MIG Wire Type : Solid
- Neck Tube Angle : 180
- Neck Tube Size : Standard
- Neck Tube Type : Fixed
- Process : MIG (GMAW)
- Prop65 Required : Yes
- Prop65 Warning Type : Cancer and Reproductive Harm
- Standard Pack Units : 1.0
- Standard Pack UOM : EA
- Standard UOM : EA
- Trigger Control Plug Included : Y
- Wire Size~Max Metric : 0.900000 cm
- Wire Size~Max US : 0.03500 in
- Wire Size~Min Metric : 0.800000 cm
- Wire Size~Min US : 0.03000 in
- Work Duty Rating : Light Duty
