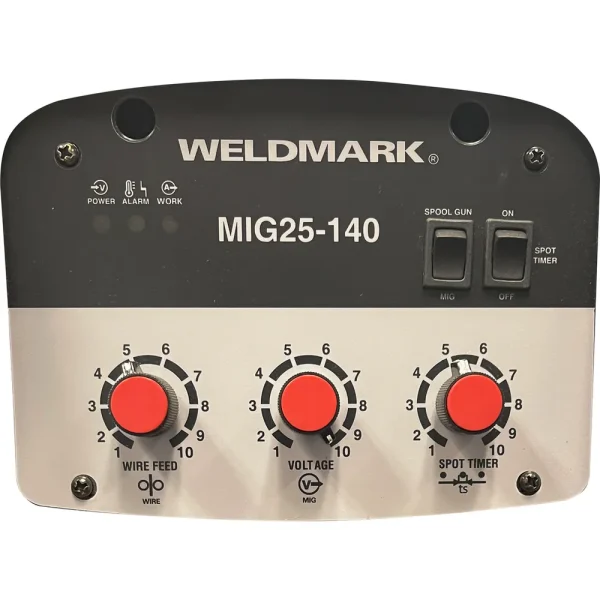

The Weldmark MIG25-140 MIG welding machine is designed to work with application materials like mild steel, stainless steel, or aluminum (if utilizing optional spool gun). The full kit includes flowgauge regulator, 10 ft gas hose, 10 ft MIG gun assembly, two extra contact tips, and 10 ft ground cable with clamp. The duty cycle on this unit is rated at 30% @90 amps, with a power input voltage of 120V 60 Hz, output range of 30-140A, and compatible with GMAW and FCAW processes. Enjoy built-in conveniences like spoolgun capability, spot timer, thermal overload protection, and infinite voltage wire speed control. This unit’s physical dimensions are 17.75 x 9.625 x 15.5 in, weighs 31 lbs, and is portable by use of handles. Meets or exceeds CSA safety standards. Made in China.
Features
- 140 amp output, 120 volts input power, 20A, 50/60 Hz, single phase
- Advanced Inverter Technology
- No Load Voltage 68V DC
- Output Range 30 to 140 Amps, 140 Amps Peak
- 30% Duty Cycle at 90 Amps
- Spot Timer Control
- MIG Gun Accepts Tweco 11 series contact tips and 21 series nozzle consumables
- Handles Up to .035 Mild Steel & Flux Core
- 10′ MIG Gun with one piece Tweco style back end connector
- Spool Gun (Optional)
- Thermal Overload Protection
- 3 Year Warranty on machine/90 days on regulator, gas hose, ground cable and MIG gun. No warranty on normal wear items such as contact tips, nozzles, tip adaptor, gun liner, drive roll and ground clamp
- Toll Free Welder Helpline: 888-762-4045
- Works with 2 lb (4″) or 11 lb (8″) spools
- Will run .023-.035 mild steel or stainless steel, .030-.035 flux-cored and .030 aluminum wires
- Has pre-installed .023 contact tip
- 10′ Ground Cable and Clamp
- Inert Gas Flowgauge Regulator and 10′ Hose
Specifications
- Country of Origin : China
- Application : MIG Welding Machine
- Includes : Flowgauge regulator, 10 ft gas hose, 10 ft mig gun assembly, two extra contact tips and 10 ft ground cable with clamp
- Applicable Materials : Mild steel, stainless steel (aluminum as well if utilizing optional spool gun)
- Duty Cycle : 30% @90 amps
- Freight Class : 70
- HTS Classification Number : 9903.88.11.00
- Input Current 120V : 20
- Input Power Phase : Single
- Input Power Voltage : 120V 60 Hz
- Item Height : 15.50000 in
- Item Length : 17.75000000 in
- Item Width : 9.62500 in
- Member Supplier Source : IWDC Distribution Centers
- MIG Gun Amperage Rating Max : 140
- MIG Gun Item Length : 10 ft
- MIG Gun Series : Weldmark
- Mild Steel Material Thickness Gauge : 24 ga
- Mild Steel~Material Thickness UOM : in
- Mild Steel~Material Thickness~Max : 0.18750
- Net Weight : 31.00000 lbs
- Output Range Max : 140 amps
- Output Range Min : 30 amps
- Portability : Handles
- Process : GMAW|FCAW
- Prop65 Required : Yes
- Rated Output Max 120V Amps : 90
- Spoolgun Capable : Yes
- Spoolgun Included : No
- Spot Timer : Yes
- Standard Pack Units : 1.0
- Standard Pack UOM : EA
- Standard UOM : EA
- Thermal Overload Protection : Yes
- Voltage|Wire Speed Controls : Infinite
