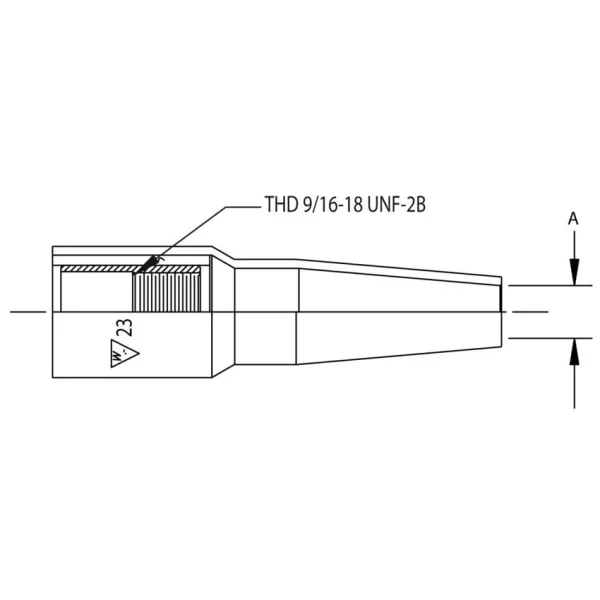

Tweco – WeldSkill 23 Series WS23T-37 Nozzle (3/8, Tapered) Tip Recess – 2 Per Pack – 1230-1035

• Used in medium to heavy duty welding application up to 450 amperes

3-piece nozzle design, includes:

• Nozzle Housing – Cut and Formed from copper alloy tubing
• Nozzle Insert – machined from a solid brass allow and machining the internal threads to match the conductor tube OD threads
• Nozzle insulator – made from silicone material, providing the electrical insulation needed from the gas diffuser

• Easy identification – Part No. rolled stamped on the outside surface

• Tapered Design

• 3-piece design – does not require an additonal insulator

• Nozzle threads onto the conductor tube assembly
