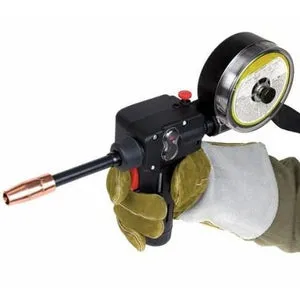

Tweco Spool Gun 200 Amp – Tweco® Style
Features:
- Ideal for a Variety of Applications– including aluminum, stainless steel, and mild steel welding
- Long Cablesallows operator to access hard to weld areas
- Three-Layer Conductor Tube Construction– (Copper Tube/ Silicon-Resin Glass Insulator / Metal Jacket) with quick disconnect
- Tweco 160 Amp and 200 Amp Spool Guns – designed to work with Tweco new inverter technology on the Fabricator® series of welding systems
- Comfortable Pistol-Grip Handle Design – with outer spool tension control for ease of operation
- ESG-1 Control Box – provides the gas solenoid with pre/post purge control and run-in control for arc starting
- Tweco 200 Amp Spool Guns – Include 3-turn potentiometer for fine wire feed speed control
- Tweco 200 Amp Spool Guns adapt to most welding machines with the use of ESG-1 Control Box
Standard Options Include:
- 10-pin Amphenol Style Connector
- Standard Straight (180°) Conductor Tube
- Holds standard 4″ (102 mm) diameter spools
- Optional 30° Rigid Conductor Tube or Knucklehead
Flexible Conductor Tube
| PART NUMBER |
SG200REB-12-3545 |
SG200REB-25-3545 |
SG200-25-3545 |
SG200TA-25-3545** |
| STOCK NUMBER |
1027-1398 |
1027-1399 |
1027-1392 |
1027-1391 |
| WELDING PROCESSES |
- MIG (GMAW)
- Aluminum (GMAW)
|
- MIG (GMAW)
- Aluminum (GMAW)
|
- MIG (GMAW)
- Aluminum (GMAW)
|
- MIG (GMAW)
- Aluminum (GMAW)
|
| APPLICATION USAGE |
Medium Duty |
Medium Duty |
Medium Duty |
Medium Duty |
| AMPS |
200 Amps |
200 Amps |
200 Amps |
200 Amps |
| DUTY CYCLE |
60% |
60% |
60% |
60% |
| GAS |
Mixed |
Mixed |
Mixed |
Mixed |
| WIRE SIZE |
Up to .045″ (1.2 mm) |
Up to .045″ (1.2 mm) |
Up to .045″ (1.2 mm) |
Up to .045″ (1.2 mm) |
| COOLED |
Air |
Air |
Air |
Air |
| REAR CONNECTOR STYLE |
Tweco® Style |
Tweco® Style |
Tweco® Style |
Tweco® Style |
| LENGTH |
12 ft (3.6 m) |
25 ft (7.6 m) |
25 ft (7.6 m) |
25 ft (7.6 m) |
** Use on Tweco Fabricator 220i and 252i power supplies only
