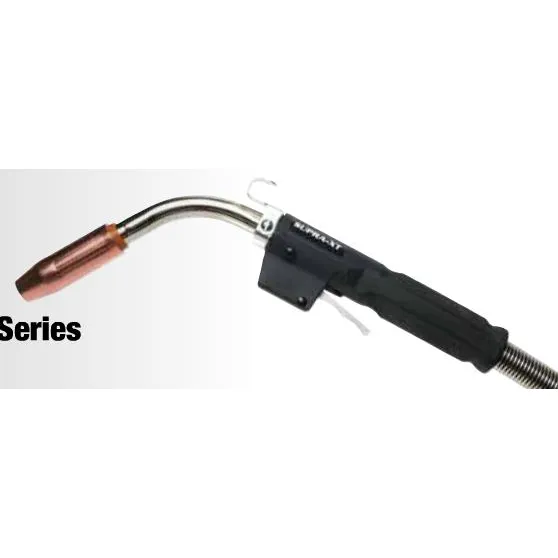

Tweco SEHD400L-5M16 (1040-1432) Supra XT SEHD 400A MIG Gun – Lincoln® Style
Features:
- High Impact-Resistant One-Piece “Straight” Handle– allows the welder to locate the trigger at the bottom or top of handle
- Metal “Paddle” Style Trigger Lever
- Three-Layer Conductor Tube Construction– (copper tube/silicon-resin glass insulator/metal jacket) threads into block for improved electrical conductivity
- Front & Rear Spring Strain Relief– provides support to eliminate kinking
- Micro-Switch Trigger Design– incorporates a button style switch for start/stop wire feed
- Spray Transfer Mode and Pulse Welding
- Straight CO2 or Mixed Gases
Standard Options Include:
- Rear Connector
- Available with Heavy Duty Front End Consumables
- Standard Conductor Tube
- Conduit Liner – 44 Series
| PART NUMBER |
SEHD400L-5M16 |
| STOCK NUMBER |
1040-1432 |
| WELDING PROCESSES |
- MIG (GMAW)
- Flux Cored (FCAW)
- Aluminum (GMAW)
|
| APPLICATION USAGE |
Medium to Heavy Duty |
| AMPS |
400 Amps |
| DUTY CYCLE |
60% |
| GAS |
Carbon Dioxide |
| WIRE SIZE |
Up to 1/16″ (1.6 mm) |
| COOLED |
Air |
| REAR CONNECTOR STYLE |
Lincoln® Style |
| LENGTH |
15 ft (4.6 m) |
