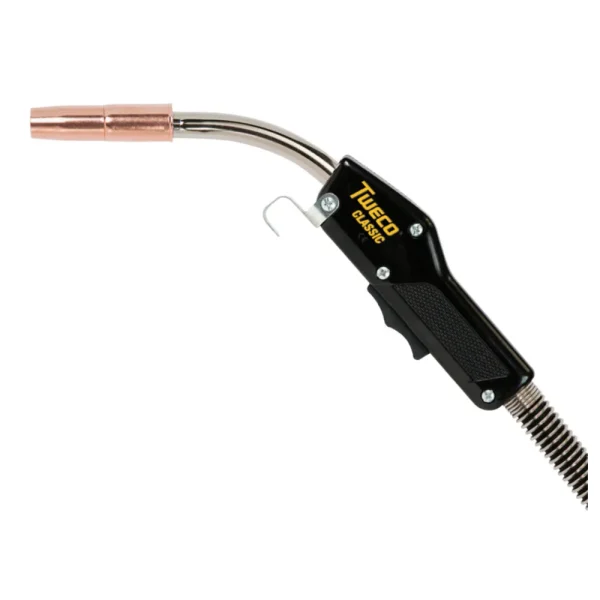

Tweco M415-564 (1040-1138) 5/64″ Classic No. 4 400 Amp MIG Gun – Miller® Style, 15 ft
Features:
- The Industry Standard– for over 40 years
- Oval-Shaped Handle– reduces grip required to manipulate MIG gun and eases operator fatigue
- High-Impact Crush-ResistantHandle– uses special plastic composition for long-lasting durability and dependability
- Heavy Duty Handle– balanced to pivot at center for use in different welding positions
- Metal Jacketed Three-Layer Conductor Tube Construction– (copper tube/silicon-resin glass insulator/metal jacket) for improved electrical conductivity
- Trigger Contains Silver Plated Contacts– with self-cleaning action every time it is engaged or disengaged
- Heavy Duty Design– for dependable industrial connectors
- Field Repairable Cablehoz®– requires no additional connectors
- Gun Hanger– located at bottom for convenience of resting the gun when not in use
- Split Handle Case– provides access for easy repairs
- Improved Performance– with longer life consumables
- Wide Selection– of front end consumables available
- Front and Rear Steel Spring Strain Relief – provides support to their Cablehoz coming out of the rear of the handle and minimizes wire feed issues
- Heavy Duty Contact Tips– in high heat applications offered
- Interchangeable Front End Consumables– between Tweco® Classic No. and Tweco Spray Master®
Standard Options Include:
- Rear Connector
- Standard Connector Tube
- Conduit Liner – 44 Series
| PART NUMBER |
M415-546 |
| STOCK NUMBER |
1040-1138 |
| WELDING PROCESSES |
- MIG (GMAW)
- Flux Cored (FCAW)
- Aluminum (GMAW)
|
| APPLICATION USAGE |
Heavy Duty |
| AMPS |
400 Amps |
| DUTY CYCLE |
60% |
| GAS |
Carbon Dioxide |
| WIRE SIZE |
Up to 5/64″ (2.0 mm) |
| COOLED |
Air |
| REAR CONNECTOR STYLE |
Miller® Style |
| LENGTH |
15 ft (4.6 m) |
