TUFFALOY Spot Weld Tip Cap – 5/8 in | 115-0015
Oxy-Fuel Cutting Tips

TUFFALOY Spot Weld Tip Cap – 5/8 in | 115-0015

Original price was: $11.46.Current price is: $3.44.

Availability: 9 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: tuf115-0015
CATEGORY: Oxy-Fuel Cutting Tips
Description

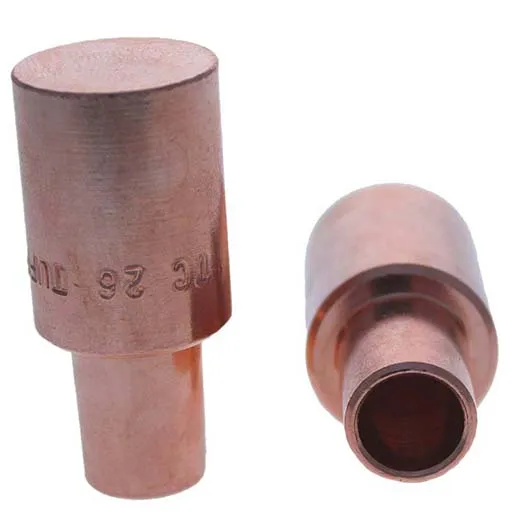

TUFFALOY Spot Weld Tip Cap – 5/8 in

Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications. RMWA Class 1 (C15000) material – a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

Features

  • The overall length is 1.2500 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.625 IN
  • The taper length is 0.500 IN

    • Specifications

    Brand Tuffaloy Products
    Overall Diameter 5/8 in
    Overall Length 1-1/4 in
    Tip Diameter 5/8 in
    MFG 115-0015
