Home › Welding & Cutting Equipment › Welders › TUFFALOY SE Bent Tip – 2-5/8 in | 170-4089
TUFFALOY SE Bent Tip – 2-5/8 in | 170-4089
Welders

TUFFALOY SE Bent Tip – 2-5/8 in | 170-4089

Original price was: $103.30.Current price is: $30.99.

Availability: 10 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: tuf170-4089
CATEGORY: Welders
Description

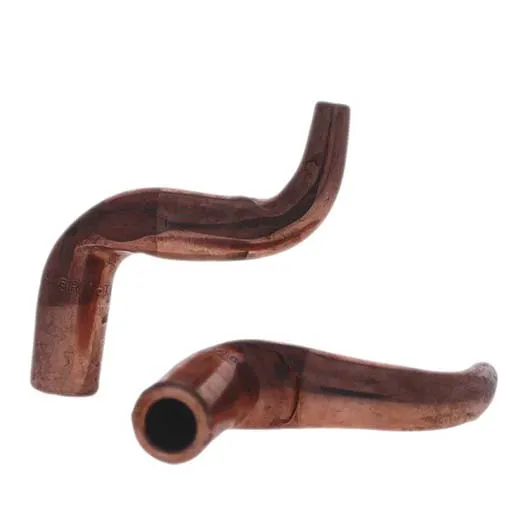

TUFFALOY SE Bent Tip – 2-5/8 in

Miscellaneous electrodes are cold formed or cast electrodes with a double bend or flattened tip for welding in tight spaces such as a flange or corner. RMWA Class 2 (C18200) material – a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

Features

  • The overall length is 2.550 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.312 IN
  • The offset is 1.75 IN

    • Specifications

    Brand Tuffaloy Products
    Overall Diameter 0.625 in
    Overall Length 2-5/8 in
    Tip Diameter 5/16 in
    MFG 170-4089
