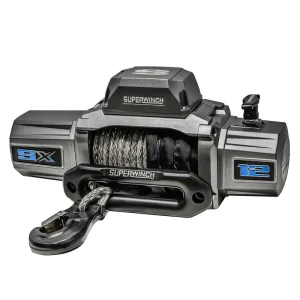

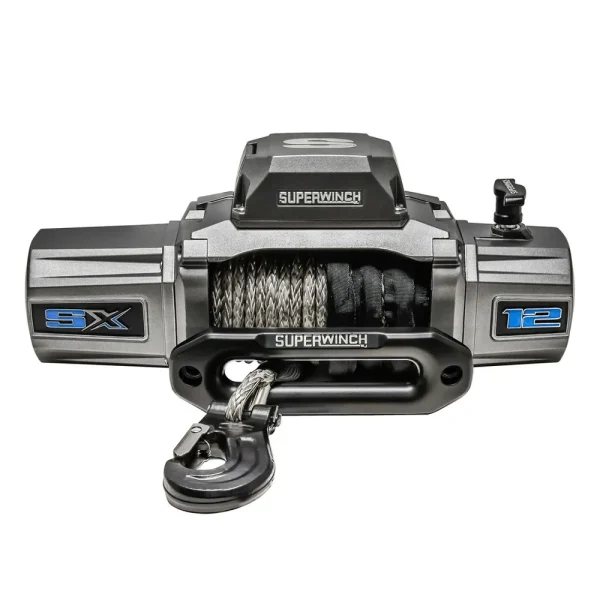

The SX12SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.
| Brake: | Automatic, 100% Load Holding Mechanical |
| Clutch: | Pull and Turn, Ergonomic Free Spooling |
| Dimensions: | 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H) |
| Drum Diameter: | 2.5in (64mm) |
| Drum Length: | 8.75in (223mm) |
| Fairlead: | Aluminum Machined Hawse |
| Gear Ratio: | 231:1 |
| Gearing: | 3-Stage Planetary |
| Hook: | Heavy-Duty, Clevis Pinned Latched |
| Line Pull, 0 lbs: | 68 Amps Motor Draw/23.4 FPM (7.13 MPM) Line Speed |
| Line Pull, 10,000 lbs: | 379 Amps Motor Draw/3.7 FPM (1.13 MPM) Line Speed |
| Motor: | Sealed 6.0 HP Series Wound |
| Mounting Bolt Pattern: | 10in x 4.5in (254mm x 114.3mm) |
| Rated Line Pull: | 12,000 lbs (5443.1 kg) |
| Remote: | Wireless Handheld and Sealed wired handheld with 12ft cord |
| Rope: | Synthetic 3/8in x 80ft (9.5mm x 24.4m) |
| Solenoid: | Sealed Solenoid, relocatable |
