Availability: 10 in stock

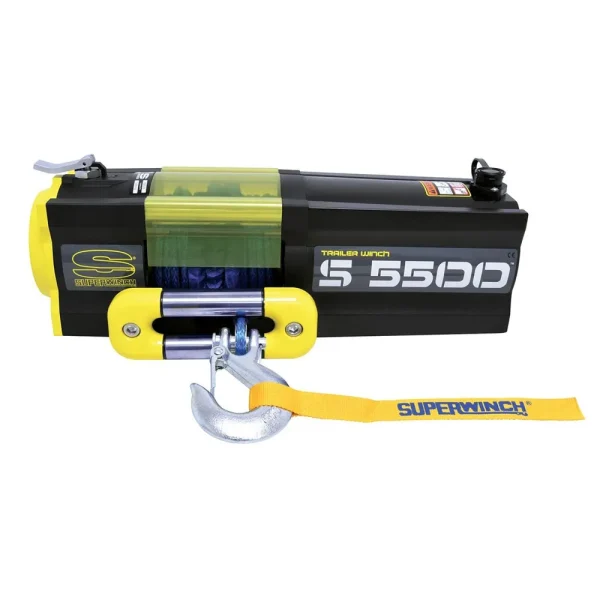

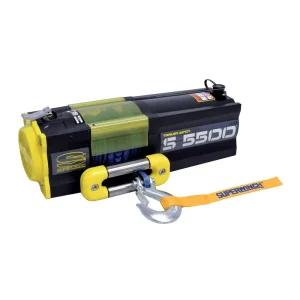

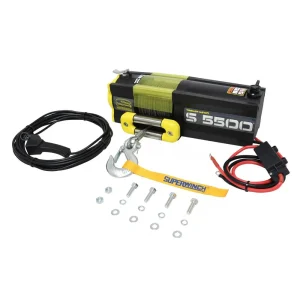

The S5500SR Winch continues Superwinch’s dominance as the leader in trailer-specific winching. The Superwinch S5500SR easily pulls loads up to 5,500 lbs, powered by a stout 3.6 HP permanent-magnet motor and an all-steel 3-stage planetary gearbox. The S5500SR includes a safety-tinted protective cover for operator safety, and to protect the cable and drum. The machined aluminum free-spool lever can also be easily operated by foot.
| Brake: | Mechanical, Automatic |
| Clutch: | N/A |
| Dimensions: | N/A |
| Drum Diameter: | N/A |
| Drum Length: | N/A |
| Fairlead: | 2-way Roller/Hawse hybrid |
| Gear Ratio: | 185:1 |
| Gearing: | 3-Stage Planetary |
| Hook: | Heavy-Duty, Clevis Pinned Latched |
| Installed Weight: | 92 lbs (42 kg) |
| Line Pull, 0 lbs: | 80 Amps Motor Draw/19 FPM (5.8 MPM) Line Speed |
| Line Pull, 5,500 lbs: | 410 Amps Motor Draw/2 FPM (0.6MPM) Line Speed |
| Motor: | 3.6 HP Permanent Magnet |
| Mounting Bolt Pattern: | N/A |
| Rated Line Pull: | 5,500 lbs (2494.8 kg) |
| Remote: | 30.5 handheld |
| Rope: | Synthetic 3/8in x 90ft (9.5mm x 27.43m) |
| Solenoid: | Sealed S3 Solenoid |
