Availability: 7 in stock

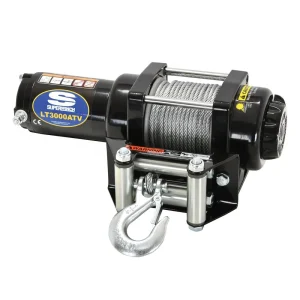

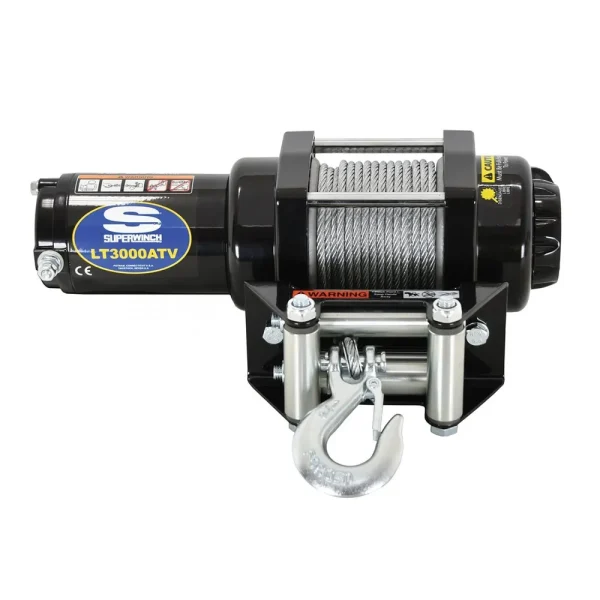

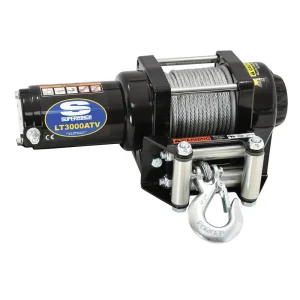

The Superwinch LT3000 is legendary for surviving pull after pull, season after season. Built for action, the LT3000 provides up to 3,000 lbs of reliable pulling power. An industrial-style remote control and innovative pull-and-turn freespool lever are standard features, and offer great value, durability, and ease of operation.
| Brake: | Automatic, 100% Load Holding |
| Clutch: | Free-Spooling, Ergonomic Control |
| Dimensions: | 13.2 L x 4.25 W x 4.25 H (335.3mm L x 108mm W x 108mm H) |
| Drum Diameter: | 2.0in (50.2mm) |
| Drum Length: | 2.9in (74mm) |
| Fairlead: | Heavy-Duty 4-Way Roller |
| Gear Ratio: | 136:1 |
| Gearing: | 1-Stage Planetary |
| Hook: | Heavy-Duty, Clevis Pinned Latched |
| Installed Weight: | 20 lbs (9 kg) |
| Line Pull, 0 lbs: | 15 Amps Motor Draw/27 FPM (8.3 MPM) Line Speed |
| Line Pull, 3,000 lbs: | 180 Amps Motor Draw/4 FPM (1.2 MPM) Line Speed |
| Motor: | 1.2 HP Permanent Magnet |
| Mounting Bolt Pattern: | 3.0in x 4.87in (76mm x 124mm) |
| Rated Line Pull: | 3,000 lbs (1360.8 kg) |
| Remote: | Sealed Hand-held with 12ft cord |
| Rope: | Steel Wire 3/16in x 50ft (4.8mm x 15.0m) |
| Solenoid: | Sealed Solenoid, Circuit Breaker Protected |
