Availability: 6 in stock
Stewart Warner offers various sensors, senders, switches, panels, light kits, and more to ease the addition or the servicing of existing gauges in your vehicle. Each component performs with great accuracy and reliability to provide years of service.
| Connector Type: | 1 (Post/Nut) |
| Gauge Line: | Deluxe |
| Gauge Note 3: | NOTE: 1 – Use tubing kit P/N 82553-F (6 ft.) or 366HM-F (16 ft.) with mechanical pressure gauges. |
| Gauge Note 5: | For other sending unit options, please see Pressure Sender section. |
| Gauge Note 6: | All gauge kits above include gauge mounting hardware. |
| Gauge Note 7: | 12V or 24V light kits are sold separately. These are available for 5/8 in. and 1/2 in. light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for list of available light kits. |

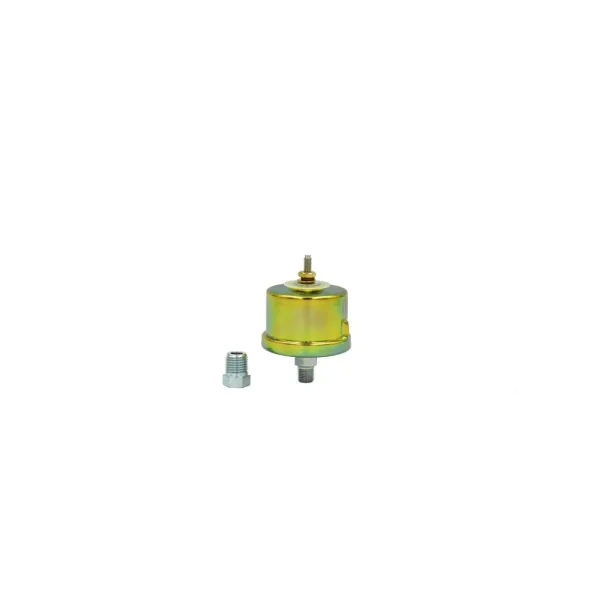

| Gauge/Item Name: | Multi Purpose Pressure Sensor |
| Gauge/Item Type: | Sensor/Sender |
| Type Description:: | Heavy Duty – Thick Film |
| Ground Type: | Stud Termination |
| Ohms: | 240-33.5 Ohms |
| Prop 65 Yes/No: | Yes |
| PSI: | 15 psi |
| Thread Size: | 1/8 in. PT |
