Availability: 6 in stock

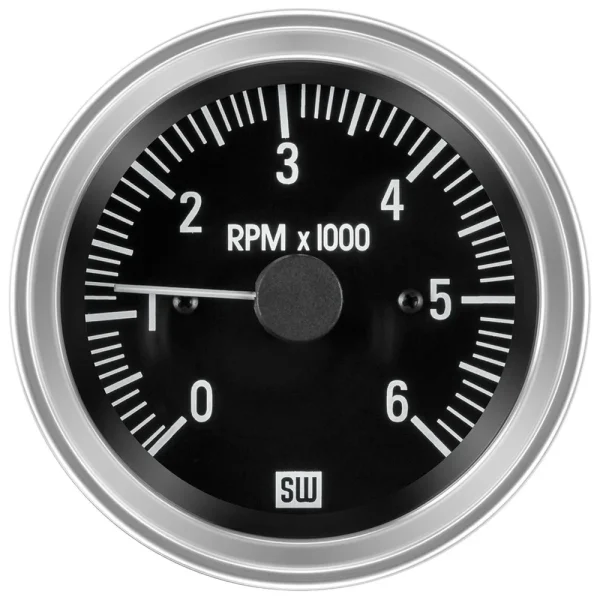

The Deluxe-Series Gauge is the original of the Stewart Warner lineup. A vintage white and black display with a low-profile bezel pairs perfectly with street rods and classic vehicles. They are available for various application readings and in both electrical or mechanical versions.
| Gauge Diameter: | 3-3/8 in. |
| Gauge Line: | Deluxe |
| Gauge Note 1: | 4, 6, 8-cylinder, RPM x 1,000; 12 Pole |
| Gauge Note 3: | NOTE: 1 – Programmable for alternator. |
| Gauge Note 4: | NOTE: 2 – Sidewinder tachometer with dial graduations rotated 90 degrees counterclockwise from vertical center. |
| Gauge Note 5: | For sending unit options, please see the Senders & Sensors section. |
| Gauge Note 6: | All gauge kits above include gauge mounting hardware. |
| Gauge Note 7: | 12V or 24V light kits are sold separately. These are available for 5/8 in. and 1/2 in. light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for list of available light kits. |
| Gauge/Item Name: | Tachometer Gauge |
| Gauge/Item Type: | Electrical Gauge |
| Type Description: | Tachometer (electrical) |
| Prop 65 Yes/No: | Yes |
| Scale Range: | 0-6000 rpm |
| Sender Type: | Ignition Coil |
