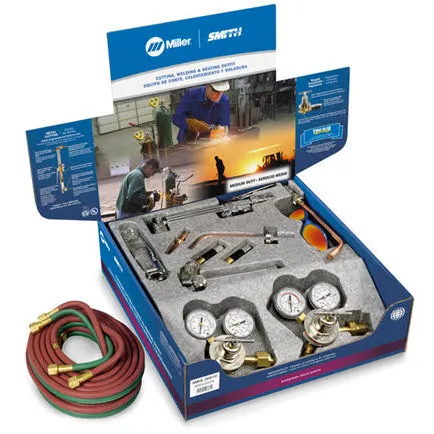

Smith® Welding & Cutting Outfit – Series 30 Medium Duty MBA-30510
The Smith® MBA-30510 medium duty welding and cutting outfit features quality construction throughout andis built to provide reliability and extended service. This oxy/acetylene torch kit comes with Smith’sproven in-tip gas mixing technology. This combinationgreatly improves operator safety and increases torch life.Regulators, cutting attachment and torch handle are covered by Smith’s True Blue® 3 year warranty. The outfit featuresrugged, highly accurate regulators. Outfits come complete with safety andoperations manual.
Features
Graf-Tite
soft seats – Resilient Graf-Tite seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
In-tip mix – Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
Slip-in tip design – just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
Removable high-pressure seat – Allows cleaning from back of tip.
Three-tube construction – Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
Ease-on oxygen cutting valve – Allows smooth piercing and keyhole free starts and restarts.
Triple o-ring seal – Provides positive gas seal, and allows rotation.
Internal threads – Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
Double-tube handle – Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
Adjustable valve resistance – Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
Stainless steel ball-style valves – Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
Replaceable hose connections – Hose connections are easily replaced if damaged.
Comes complete with
W100 Torch handle
MC509 Cutting attachment
MC12-0 Acetylene cutting tip
MC12-1 Acetylene cutting tip
MW205 Welding tip
MT603 Heating tip
30-100-540 Oxygen regulator
30-15-510 Acetylene regulator
RL935 3/16″-20 ft. twin hose
N113ANB Friction lighter
Miller 235657 Safety glasses
N230 Tip cleaner
H743 Torch mount flashback arrestors
Operations manual
Know your acetylene inlet
If your tank valve has female threads, you should choose a CGA 510 (male) regulator. Note: will not fit “B” or “MC” acetylene cylinder.
