Smith® Welding & Cutting Outfit – Heavy Duty HBA-40300
The Smith® HBA-40300 welding and cutting kit is a premium heavy duty torch outfit featuring Smith’s proven in-tip gas mixingtechnology. This greatly improvesoperator safety and increases torchlife.Regulators, cutting attachment and torch handle are covered by Smith’s True Blue® 3 year warranty. The Smith® 40 series heavy duty brass regulators have large 2.5 inch gauges.
Outfits are complete with safety and operations manual. Alloutfits include 2 cutting tips, welding tip, heating tip,tip cleaner.
Applications
HEAVY DUTY CUTTING,WELDING &HEATING OUTFITCUTS UP TO 8 inches (203mm)WELDS UP TO 1/2 inch (13mm)(With optional tips)
Features
Graf-Tite soft seats – Resilient Graf-Tite seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
In-tip mix – Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
Slip-in tip design just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
Removable high-pressure seat – Allows cleaning from back of tip.
Three-tube construction – Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
Ease-on oxygen cutting valve – Allows smooth piercing and keyhole free starts and restarts.
Triple o-ring seal – Provides positive gas seal, and allows rotation.
Internal threads – Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
Double-tube handle – Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
Adjustable valve resistance – Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
Stainless steel ball-style valves – Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
Replaceable hose connections – Hose connections are easily replaced if damaged.
Specs

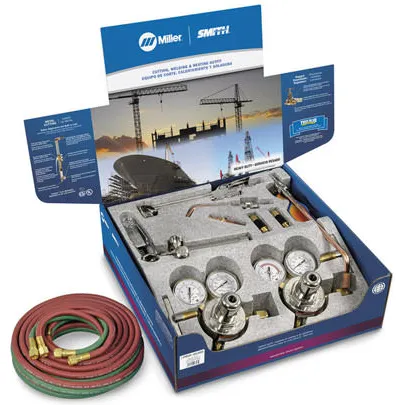

Comes complete with:
40 Series heavy duty oxy/acetylene regulators
WH200A heavy duty torch handle
SC209 heavy duty cutting attachment
1 each SC12-1 & SC12-2 cutting tips
SW205 welding tip
ST602 heating tip
25-ft. (7.6 m) 1/4-in. (6 mm) grade R twin hose
Spark lighter
Safety glasses
Tip cleaner
H743 torch-mount flashback arrestors
Operations manual
Know your acetylene inlet
If your tank valve has male threads, you should choose this CGA 300 (female) torch kit. Note: will not fit “B” or “MC” acetylene cylinder.
