Smith® Propane Cutting and Heating Outfit MBA-30510LP
Smith® MBA-30510LP cutting and heating outfit is a medium duty oxy/fuel kit that uses propane (LP) as the fuel gas. It comes complete with MC40-1 propane cutting tip and MT-805 “rosebud” heating tip.
The MBA-30510LP oxy/propane torch kit comes with Smith’sproven in-tip gas mixing technology, which helps eliminate flash backs increases torch life. Regulators, cutting attachment and torch handle are covered by Smith’s True Blue® 3 year warranty. The outfit featuresrugged, highly accurate 30 series regulators. Outfit comes complete with safety andoperations manual.
Made In USA
Features
Graf-Tite
soft seats – Resilient Graf-Tite seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
In-tip mix – Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
Slip-in tip design – just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
Removable high-pressure seat – Allows cleaning from back of tip.
Three-tube construction – Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
Ease-on oxygen cutting valve – Allows smooth piercing and keyhole free starts and restarts.
Triple o-ring seal – Provides positive gas seal, and allows rotation.
Internal threads – Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
Double-tube handle – Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
Adjustable valve resistance – Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
Stainless steel ball-style valves – Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
Replaceable hose connections – Hose connections are easily replaced if damaged.

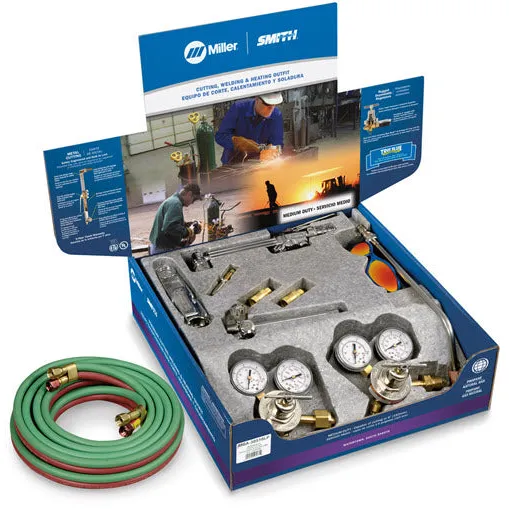

Comes complete with
Torch handle (WH100)
Cutting attachment (MC509)
Oxygen Regulator(30-100-540)
LPG Regulator (30-50-510)
Cutting Tip (MC40-1)
Heating Tip (MT805)
20-ft 1/4″ Twin Hose
Friction Lighter
Safety Glasses
Tip cleaner
Regulator Mount Check Valves
Operations Manual
