Smith® Heavy Duty Cutting Torch Outfit HBAS-30300
Genuine Smith® HBAS-30300 cutting torch kit is a premium heavy duty outfit featuring Smith’s Series 30 medium duty gas regulators and heavy duty SC229 straight cutting torch. Smith’s proven in-tip gas mixing technology greatly improves operator safety and increases torch life. Twenty one-inch SC229 straight cutting torch is covered by Smith’s True Blue® 5 year warranty. Regulators are covered by Smith’s True Blue® 3 year warranty. The Smith® 30 series medium duty brass regulators have large 2 inch gauges.
Outfits come complete with safety and operations manual. Outfit includes one SC12-1 cutting tip for cutting 1/2″ to 5/8″ thick mild steel.
Applications
HEAVY DUTY CUTTING, WELDING & HEATING OUTFIT CUTS UP TO 12 inches (with optional tips).
Features
Graf-Tite® soft seats – Resilient Graf-Tite® seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
In-tip mix – Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
Slip-in tip design – just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
Removable high-pressure seat – Allows cleaning from back of tip.
Three-tube construction – Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
Ease-on oxygen cutting valve – Allows smooth piercing and keyhole free starts and restarts.
Triple o-ring seal – Provides positive gas seal, and allows rotation.
Internal threads – Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
Double-tube handle – Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
Adjustable valve resistance – Special PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the individual preference.
Stainless steel ball-style valves – Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
Dual Filters Including Sure Seat
– The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
Replaceable hose connections – Hose connections are easily replaced if damaged.

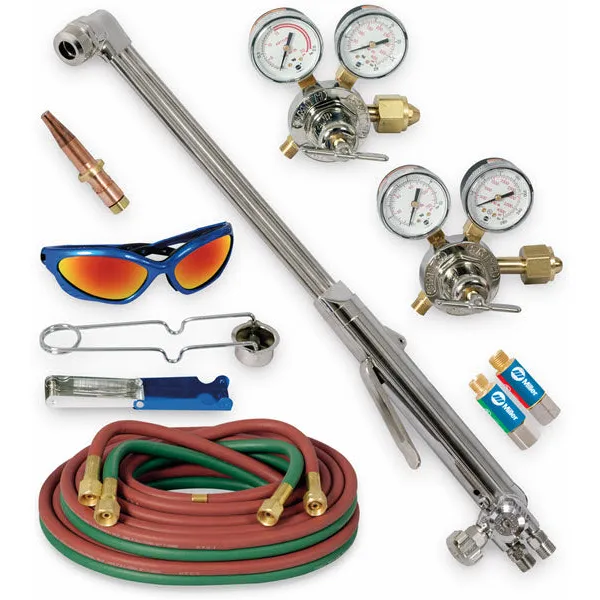

Comes complete with:
SC229 21-inch straight cutting torch with 90 degree head
SC12-1 Acetylene cutting tip
30-100-540 Oxygen regulator
30-15-300 Acetylene regulator
RL935 20-ft 3/16″ Twin hose
16571 Friction lighter
235657 Safety glasses
16570 Tip cleaner
H743 Torch mount flashback arrestors
operations manual
Know your acetylene inlet
If your tank valve has male threads, you should choose this CGA 300 (female) torch kit. Note: will not fit “B” or “MC” acetylene cylinder.
