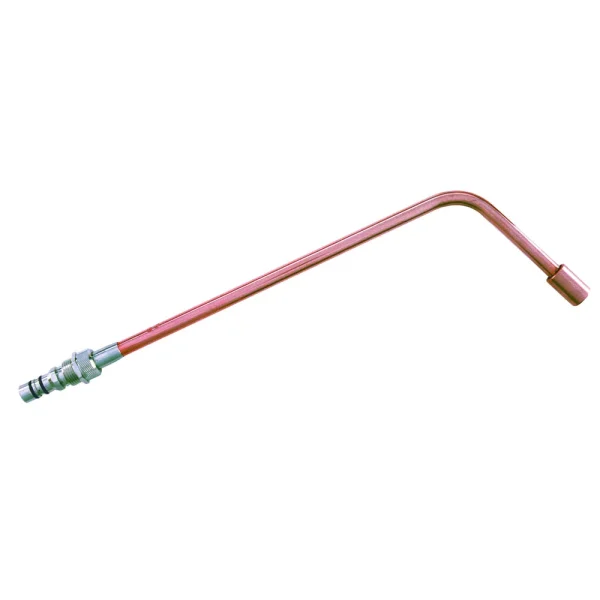

Smith HD Acetylene Heating Tip, 890 Avg BTU/HR – ST610

Smith’s ST Series, multi-flame heating tip, size ST610, is designed to provide large volumes of heat for applications such as heat treating, priming, bending, straightening, pre-heating, brazing, shrinking, forming, and many others

• Smaller sizes are often used for braze welding or for applying hard-facing metal to large areas.

• Heating tips provide significant cost savings in many applications.

• By providing great amounts of quick, concentrated heat, heating tips do the job faster and cut labor time to a minimum.

• For proper performance, use the recommended pressures for each tip and with an adequate gas supply.

• Manifolding of cylinders is essential for the safe and efficient operation of large-size heating tips. Acetylene multi-flame heating tips are designed to provide large volumes of concentrated heat for bending, straightening, shrinking, forming, and many other applications. Smaller sizes are often used for bronze welding or for applying hard-facing metal to large areas.

• For oxy/acetylene or oxy/hydrogen. Suitable for use with Smith WH200, SW1A, and SW1B torch handles.

CAUTION: Heating tips must be used in conjunction with high-flow flashback arrestors. It may be necessary to increase outlet pressures to compensate for flow restrictions that may be created by flashback arrestors.

WARNING: MANIFOLDING CYLINDERS: When required flows (cubic feet per hour – SCFH) exceed the recommended withdrawal rate from one cylinder then additional cylinders must be manifolded to provide safe and efficient operation. Acetylene must not be withdrawn at more than 1/7 of the cylinder capacity (47 SCFH for a 330 cu. ft. cylinder). Consult your gas supplier for manifolding instructions for the gases and cylinders supplied to you.
