Smith® Cutting Outfit – Heavy Duty w/SC229 HBS-H300S
The Smith® HBS-H300S heavy duty cutting outfit features the most popular oxy/fuel cutting combination in the industry: the Smith® SC229 cutting torch paired with Smith’s rugged Hard Hat regulators. The SC229 cutting torch is covered by Smith’s True Blue® 5-Year Warranty when genuine Smith® cutting tips are used.
The rugged 40 series regulators are covered by Smith’s limited 3 year warranty and come standard with heavy duty steel “hard hats” that protect pressure gauges from job site damage.
Cuts up to 12 inch steel with optional cutting tips (1 1/4″ with supplied cutting tip).
Features
Graf-Tite soft seats – Resilient Graf-Tite seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
In-tip mix – Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
Slip-in tip design just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
Removable high-pressure seat – Allows cleaning from back of tip.
Three-tube construction – Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
Ease-on oxygen cutting valve – Allows smooth piercing and keyhole free starts and restarts.
Triple o-ring seal – Provides positive gas seal, and allows rotation.
Internal threads – Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
Double-tube handle – Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
Adjustable valve resistance – Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
Stainless steel ball-style valves – Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
Replaceable hose connections – Hose connections are easily replaced if damaged.

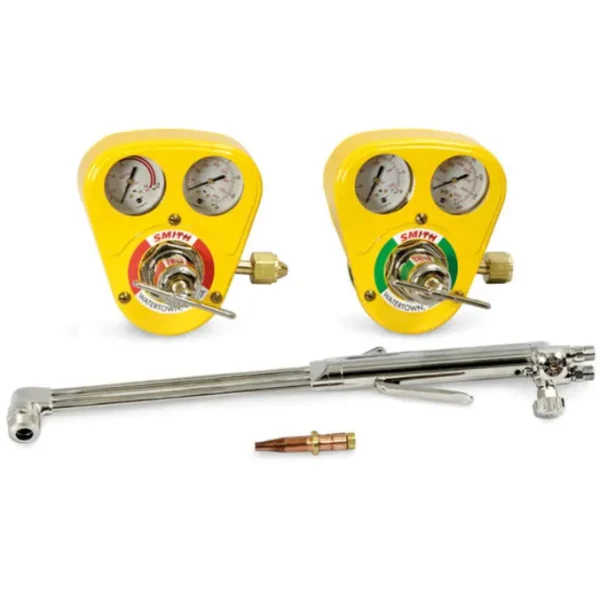

Comes complete with:
SC229 cutting torch
SC12-2 cutting tip
40-175-540 oxygen regulator
40-15-300 acetylene regulator
2 – H190 steel Hard Hat gauge protectors (installed)
Know your acetylene inlet
If your tank valve has male threads, you should choose this CGA 300 (female) torch kit. Note: will not fit “B” or “MC” acetylene cylinder.
