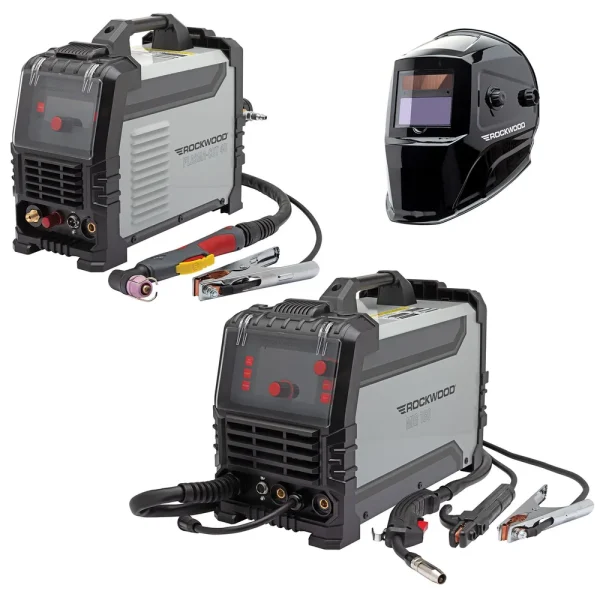

Ignite your metalworking journey with the Rockwood Welder & Plasma Beginner Bundle — a thoughtfully assembled kit that gives new welders everything needed to learn, experiment, and excel. This all-in-one package delivers reliable power, safety, and precision, pairing ease of use with real-world capability.

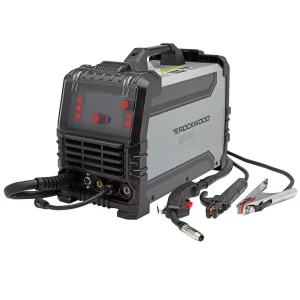

At the heart of the bundle is the Rockwood MIG‑160 Welder, a 160‑amp, dual-voltage (120/240 V) inverter machine that offers MIG, stick, and flux-core welding up to 5/16″ thick metal. Adaptive features like smart wire feed and automatic voltage control ensure smooth, consistent welds—even if you’re still learning the ropes. Plus, its compact design and built-in thermal protection make it ideal for home garages and occasional tasks.
Safety and visibility go hand in hand with the included Rockwood Auto‑Darkening Welding Helmet, offering variable shades from DIN 5 to DIN 13, a quick 1/25,000‑sec switch time, and ANSI Z87.1 impact protection—giving you clarity and peace of mind under the arc.
Finishing the set is the Rockwood Plasma‑Cut 40 Amp Cutter, a lightweight yet powerful IGBT-based unit capable of slicing through steel, stainless, and aluminum up to 3/8″ thick. Featuring a Trafimet CB50 torch, a digital display, 2T/4T operation, and a pilot arc for tough surfaces, it balances precision and portability beautifully.
Rockwood Welder & Plasma Beginner Bundle Features:
Rockwood Mig 160 Mig Welder
Input Voltage: 240 VAC 50/60Hz 1 Ph / 120 VAC 50/60Hz 1 Ph
No Load Voltage MIG/Stick: 64V
No Load Voltage TIG: 22V
Rated Input Current MIG (I1max / I1eff): (240V) 29.4A / 18.6A – (120V) 30.6A / 16.8A
Rated Input Current TIG (I1max / I1eff): (240V) 24.2A / 17.1A – (120V) 23.7A / 13.0A
Rated Input Current Stick (I1max / I1eff): (240V) 29.4A / 20.8A – (120V) 37.2A / 20.4A
Output Current Adjustment MIG: (240V) 30A (15.5V) – 160A (22V) – (120V) 30A (15.5V) – 120A (20V)
Output Current Adjustment TIG: (240V) 10A (10.4V) – 160A (16.4V) – (120V) 10A (10.4V) – 120A (14.8V)
Output Current Adjustment Stick: (240V) 20A (20.8V) – 140A (25.6V) – (120V) 20A (20.8V) – 120A (24.8V)
Rated Duty Cycle MIG: (240V) 40% @ 160A, 60% @ 130A, 100% @ 100A – (120V) 30% @ 120A, 60% @ 85A, 100% @ 66A
Rated Duty Cycle TIG: (240V) 50% @ 160A, 60% @ 140A, 100% @ 110A – (120V) 30% @120A, 60% @ 85A, 100% @ 66A
Rated Duty Cycle STICK: (240V) 50% @ 140A, 60% @ 130A, 100% @ 100A – (120V) 30% @ 120A, 60% @ 85A, 100% @ 66A
Starting Method TIG: Lift Start
Power Factor: 0.73
Efficiency: 80%
Wire Feed Speed MIG: 80 – 472 in/min
Welding Wire Diameter: 0.023 – 0.035 inches
Overall Dimensions 17.44″ x 8.66″ x 12.83″ (443 x 220 x 326mm)
Weight: 21.61 lbs. (9.8kg)
Rockwood Plasma-Cut 40 Amp Plasma Cutter
Input Voltage: 240V±10% VAC, 50/60 Hz, 1 Phase / 120V±10% VAC, 50/60 Hz, 1 Phase
No Load Voltage: 350V
Rated Input Current (I1max / I1eff): (240V) 29.5A / 16.2A – (120V) 33.5A / 18.3A
Output Current Adjustment: (240V) 15A (86V) – 40A (96V) – (120V) 15A (86V) – 30A (92V)
Rated Duty Cycle: (240V) 30% @ 40A / 100% @ 22A – (120V) 30% @ 30A / 100% @ 17A
Starting Method: High Frequency
Air Requirements: 5 – 7 CFM @ 60 psi
Maximum Material Thickness: 3/8″
Overall Dimensions: 14.09″ x 6.69″ x 12.08″ (358 x 170 x 307mm)
Weight 13.89 lbs. (6.3kg)
Rockwood Welding Helmet
Light Shade: DIN 4
Dark Shade: DIN5-9, DIN9-13
Light to Dark Switch Time: 1/25000 sec.
Cartridge Size: 110X90X8mm
Viewing Area: 92X42mm
Delay Time: .25s/.7s
Grind Mode Shade: DIN 4
Arc Sensors: 2
Tig Welding Capability: >5A
Helmet Weight: 1.08 Lbs
Optical Class: 1/1/1/2
ANSI Z87.1 Rated
