Availability: 5 in stock

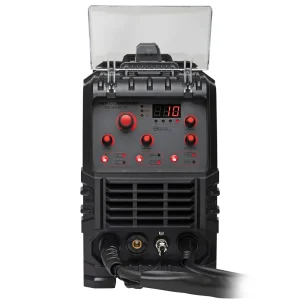

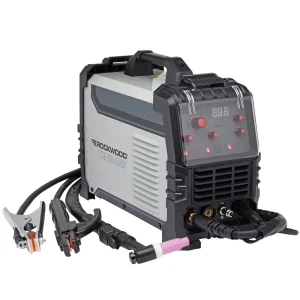

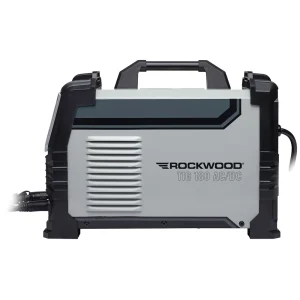

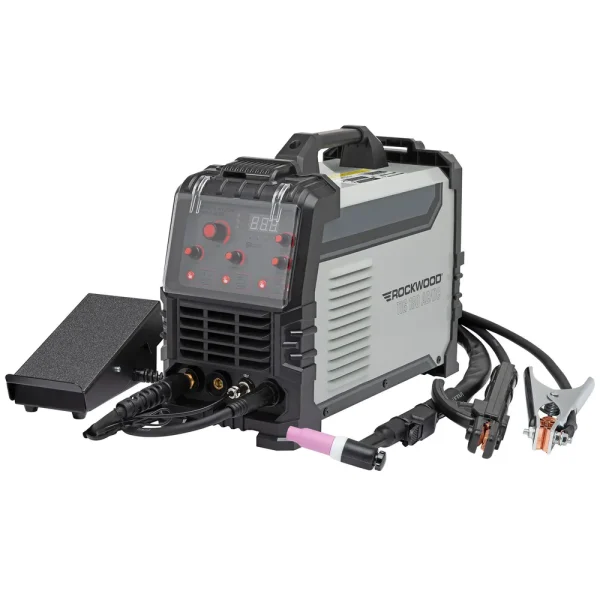

The Rockwood TIG 180 AC/DC Welder draws on Eastwood’s fifteen years of experience in the welder market to bring you our most affordable true AC/DC, high-frequency TIG welding machine yet. Selectable AC or DC output enables you to weld aluminum or steels and more. AC balance and frequency adjustments let you dial in your welds. High-frequency (HF) start means you don’t need to touch tungsten to workpiece to initiate the welding arc. Simply click the hand trigger on the included WP-17 type TIG welding torch or press on the included foot pedal to get started. The latest in inverter technology keeps the unit lightweight and portable while still offering a peak output capable of welding 3/16” material and beyond. This welder is a dual-voltage machine that can plug into a normal household outlet or unlock full power with a dedicated welder outlet. Start your TIG welding journey with this versatile TIG machine.
Rockwood TIG 160 AC/DC Welder Features:
Input Voltage: 240 VAC, 50/60Hz, 1 Ph / 120 VAC, 50/60Hz, 1 Ph
No Load Voltage: 68V
Rated Input Current: DC TIG (I1max / I1eff): (240V) 24.9A / 12.5A – (120V) 35.1A / 17.6A
Rated Input Current: AC TIG (I1max / I1eff): (240V) 24.9A / 15.7A – (120V)35.1A / 22.2A
Rated Input Current: Stick (I1max / I1eff): (240V) 27.8A / 13.9A – (120V) 42.5A / 21.3A
Output Current Adjustment TIG: (240V) 10A (10.4V) – 180A (17.2V) – (120V) 10A (10.4V) – 140A (15.6V)
Output Current Adjustment Stick: (240V) 20A (20.8V) – 150A (26V) – (120V) 20A (20.8V) – 120A (24.8V)
Rated Duty Cycle DC TIG (240V): 25% @ 180A (17.2V) / 60% @ 116A (14.6V) / 100% @ 90A (13.6V)
Rated Duty Cycle DC TIG (120V): 25% @ 140A (15.6V) / 60% @ 90A (13.6V) / 100% @ 70A (12.8V)
Rated Duty Cycle AC TIG (240V): 40% @ 180A (17.2V) / 60% @ 147A (15.9V) / 100% @ 114A (14.6V)
Rated Duty Cycle AC TIG (120V): 40% @ 140A (15.6V) / 60% @ 115A (14.6V) / 100% @ 89A (13.6V)
Rated Duty Cycle Stick (240V): 25% @ 150A (26.0V) / 60% @ 97A (23.9V) / 100% @ 75A (23.0V)
Rated Duty Cycle Stick (120V): 25% @ 120A (24.8V) / 60% @ 77A (23.1V) / 100% @ 60A (22.4V)
Starting Method: TIG High Frequency
Power Factor 0.73
Efficiency: TIG: 71% / Stick: 80%
Pre-Flow Time: 0.1 s – 3.0 s
Post-Flow Time: 1 s – 15 s
Overall Dimensions 17.24″ x 7.60″ x 12.91″ (438 x 193 x 328mm)
Weight 19.8 lbs. (9kg)
