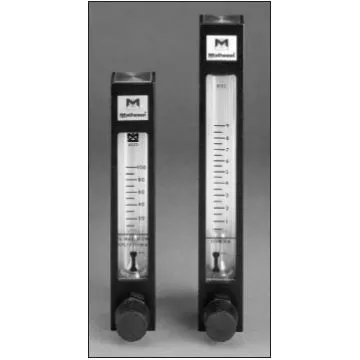

RMA 29141 – Refit FM-1100 with Buna Seals

Convert A14Y201A126 rotameter to A1DY201A126 by replacing the Viton seals with Buna seals.

Design Features

• Precision tapered, fluted metering tube
• Fully protected assembly using aluminum meter case
• Unobstructed flow path area for low pressure drop increases available flow rates at low feed pressures
• Precision machined float
• Spring float stops absorb line shock
• Float/Scale correlation symbol and float reading edge instructions permanently screened on meter window

Materials of Construction

• Wetted End Blocks, Fittings and Internal Parts: 316 stainless steel
• Seal Materials: Buna-N
• Meter Case: Black painted or anodized aluminum with acrylic window
• Metering Tube: Borosilicate glass
• Piping Connections: 316 stainless steel 1/4” NPT Female
• Float Material: 316 stainless steel
• Scale: Permanently screened on inside of meter window, length FM-1100 –70mm

Specifications

• Pressure Rating: 200 psig maximum operating pressure @ 200°F
• Temperature Rating: 250°F maximum operating temperature
• Accuracy: ±10% of full scale flow rate
• Range: 10 to 1, i.e., 100% to 10% of full scale
• Scale Reading: Direct reading air (special other scales available)
