Availability: 6 in stock

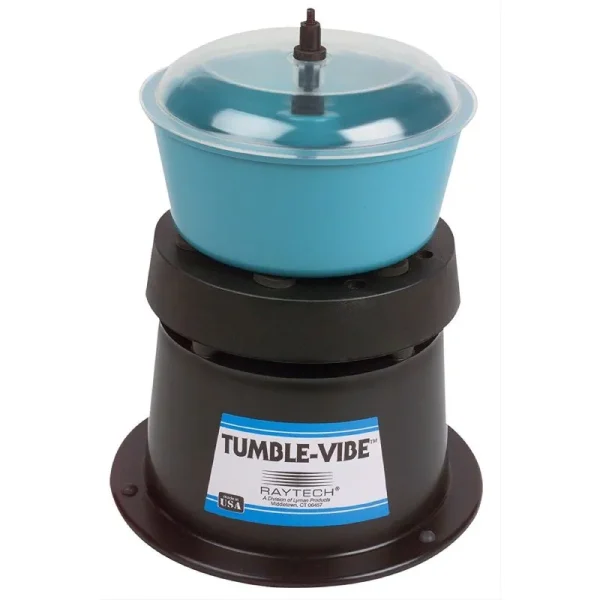

Your new Raytech Tumbler comes with a motorized base, one bowl and one lid. If the tumbler will be used for polishing as well as for cutting, always reserve one bowl strictly for the polishing step so that it will be free from embedded cutting grit. The working capacity of the Tumble-Vibe5 is approximately.05cu.ft. (or three pints) or 4 pounds. The capacity includes both the media and the work pieces. This popular economical and versatile unit is a favorite of hobbyists and is used commercially as well. The .05 cubic foot 8-inch bowl with solid lid holds 25 ring castings with media or will process about four pounds of rock. Do not run steel shot in this machine . Doing so will void the warranty. CE
TECH TIPS
This popular economical and versatile unit is a favorite of hobbyists and is used commercially as well. The .05 cubic foot 8-inch bowl with solid lid holds 25 ring castings with media or will process about four pounds of rocks.
| Part Number | 23001R ( 115V ) |
|---|---|
| Motor | 115v 60Hz 0.9 Amps Wattage Power 50W / 230v is 50Hz 0.5 Amps Wattage Power 40W Noise level 82db |
| Best Use | Deburring metal stampings and machined parts |
| Helpful Hint | See Tech Tips |
| Unit Weight | 7lbs |
| Pack Carton Size | 1.05 Cubic feet |
| Box Measurements | 11 x 11 x 14” |
| Bowl Capacity Size | .05 Cubic ft holding 3 pints or 4 pounds (inclusive of media and work pieces) |
| Bowl Diameter | 8 Inches |
| Bowl Height To Lid | 3.75 Inches |
| Bowl Width To Shaft | 4 Inches |
