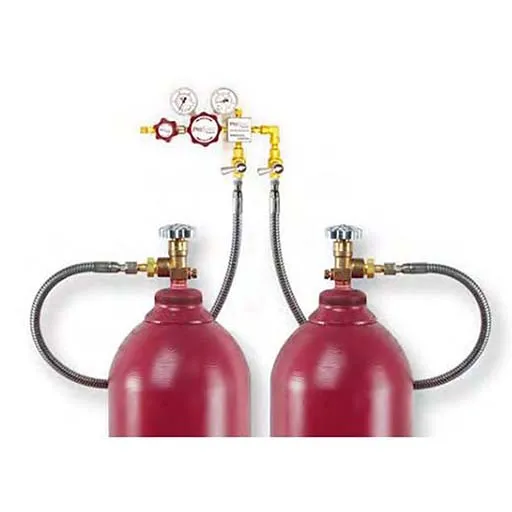

Prostar PRSWO5029 FOR CH 36 | 50290155320

Protocol Switchover for chrome-plated or brass regulators maximum inlet 3,000 psig (4,000 psig); 320 CGA

5029 Protocol Switchover Station

The 5029 Series Protocol Switchover Station combines all of the safety and convenience features of a standard Protocol Station with the added efficiency of having a reserve cylinder connected to the system. The Protocol Switchover Station valving allows manual switching between a primary cylinder and reserve cylinder. Isolation of the depleted cylinder allows safe changeout without back flow of gas through the pigtail.

Protocol Switchover Stations are available in brass or 316 stainless steel with a variety of pressure ranges (3,000 psig, 4,500 psig and 6,000 psig). The system comes complete with a Protocol Station, two 3-foot tall stainless steel pigtails with armor casing, two 1/4 turn diaphragm valves (3,000 psig) or needle (4,500 or 6,000 psig). Alarms are also available for the Protocol Switchover Station.

Features and Benefits

• Plugged Port in Gas Block Facilitates purging
• Pressure Switch Gauge Provides visual warning of cylinder depletion (optional)
• Remote Alarm (Optional) Provides audible and visual warning of cylinder depletion
• Intergral Check Valve No internal contamination during cylinder changeouts
• Mountable to Any Suitable Surface Easy installation
• Gas Block Helps maintain gas purity
• Metal-to-Metal Diaphragm Seal Reduces possibility of gas contamination
• Low Wetted Surface Area Minimal purge requirements
• 316L Sainless Steel Diaphragm No inboard diffusion

Specifications

• Maximum Inlet Pressure 3000 psig (210 bar); 450 psig (300 bar) optional; 600 psig (380 bar) optional
• Temperature Range -40°F to 140°F (-40°C to 60°C)
• Weight 3.5 lb (1.6 kg) less regulator

Materials

• Gas Block 316L stainless steel barstock; Chrome plated brass for oxygen service
• Check Valve O-Ring Viton
• Bracket 316L stainless steel
• Inlet Connection Brass of 316L stainless steel CGA
• Flexible Pigtails 316 stainless steel barstock innercore – Monel for oxygen service
