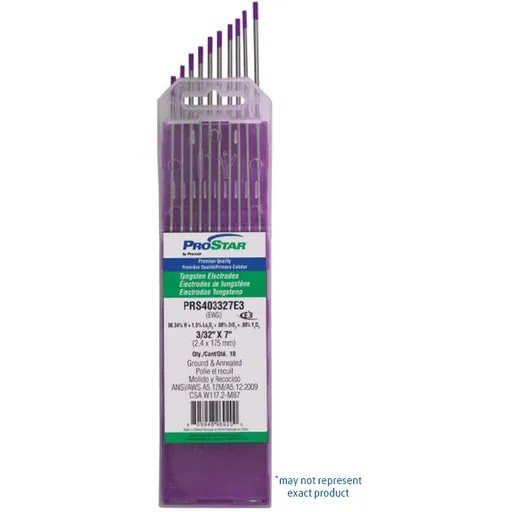

Prostar E3 Tungsten Electrode – .040″ x 7″ Size | 040-7E3

E3 Tungsten Electrode – .040″ x 7″ Size

E3 Electrodes run much cooler, extending tip life: Electrodes run approx 1,650° F cooler than 2% thoriated at the same output energy.

Testing has shown that ignition delay with E3 actually improves over time, while thoriated tungsten begins to deteriorate after only 25 starts.

Features

• Longer life
• Stable tip and arc geometry
• Best choice to replace thoriated electrodes
• Non-radioactive additives
• Proven to outperform other electrodes
• Can be used in both DC and AC processes

Specifications

• AWS Spec. – A5.12M/A5.12:2009
• AWS Class. – EWG
• Color Code – Purple
• Chemical Specification – Chemical Specification: 98.34% W (tungsten) + 1.5%
• La2O3 + .08% ZrO2 + .08% Y2O3
