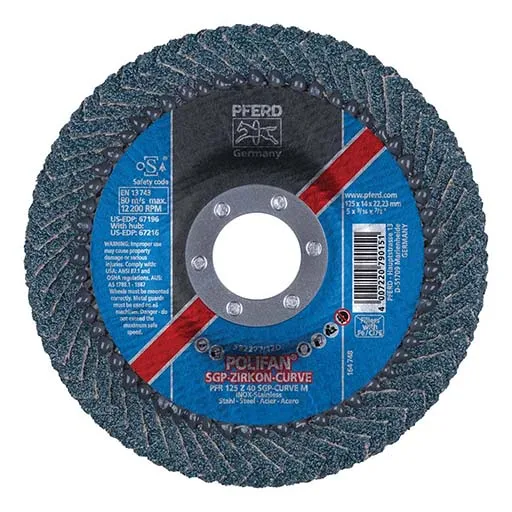

Polifan – Pferdvalue Special Line SGP Z-CURVE Flap Disc – 5 in – 12200 RPM – Arbor | 67196

Flap Disc 5X7/8 Z40 Curve Med

POLIFAN-CURVE is a PFERD innovation designed to quickly achieve a smooth, consistent surface finish on fillet welds. The unique radial construction shape (PFR) offers a superior solution for this common task.

• Tough and aggressive – removes scale and bead from all metals: steel, stainless steel (INOX), aluminum and alloys.
• Works faster than grinding wheels without the risk of undercutting the workpiece.
• Precise grinding out of fillet welds provides a superior surface finish.
• Smooth finish allows easy visual inspection for defects, such as porosity and inclusions.
• Ideal for repair applications to remove defects without damage to adjacent areas. Leaves ample room for new weld bead.
• Excellent tool life, including the radius edge of the disc.
• Multi-purpose – may be used as a conventional Flap Disc, and also for underhand applications using the top of the disc.

POLIFAN SGP ZIRKON-CURVE offers fast material removal of Steel with a good surface finish and extended service life.

• Abrasive: Zirconia Alumina Z
• Grit size: 40
• Workpiece Materials:
  • Ideal for: Steel
  • Suitable for: Stainless Steel (INOX)
• Application: Fillet weld grinding, chamfering, deburring
• Recommendation for Use: The best results are achieved on high-performance angle grinders.
• Available in two thicknesses:
  • Medium for fillet weld widths > 3/16″(5 mm)
  • Large for fillet weld widths > 5/16″ (8 mm)

EDP: 67196

Diameter (Inches): 5

Thickness (inches): 9/16

Thickness (mm): 14

Arbor Hole / Thread Size: 7/8 A.H.

GRIT: 40

MAX RPM: 12,200

Radius Size: Medium

For Fillet Weld Width: Medium > 3/16″ (5mm)
