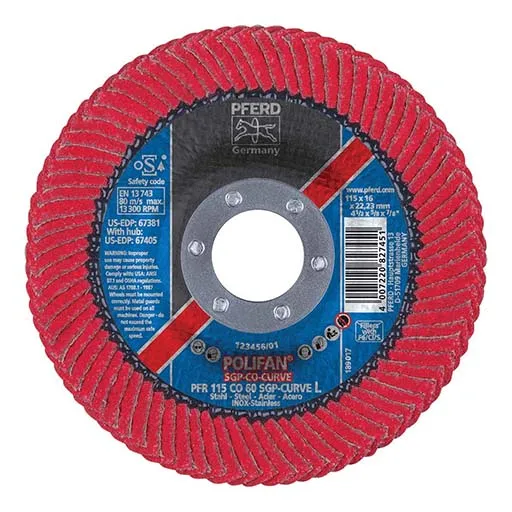

Polifan – Pferdvalue Special Line SGP CO-CURVE Flap Disc – 60 – 7/8 in | 67381

Flap Disc 4-1/2X7-1/8 60G Plfn

POLIFAN -CURVE is a PFERD innovation designed to quickly achieve a smooth, consistent surface finish on fillet welds. The unique radial construction shape (PFR) offers a superior solution for this common task.

• Tough and aggressive – removes scale and bead from all metals: steel, stainless steel (INOX), aluminum and alloys.
• Works faster than grinding wheels without the risk of undercutting the workpiece.
• Precise grinding out of fillet welds provides a superior surface finish.
• Smooth finish allows easy visual inspection for defects, such as porosity and inclusions.
• Ideal for repair applications to remove defects without damage to adjacent areas. Leaves ample room for new weld bead.
• Excellent tool life, including the radius edge of the disc.
• Multi-purpose – may be used as a conventional Flap Disc, and also for underhand applications using the top of the disc.

The POLIFAN SGP CO-CURVE is designed for demanding to grind, especially for achieving fine surface finishes. The top-sized ceramic grain guarantees cool grinding on poor heat-conducting materials, without thermal damage to the workpiece.

• Abrasive: Ceramic Oxide CO
• Grit size: 60
• Workpiece Materials:
• Ideal for: Stainless steel (INOX), High Nickel Alloys
• Suitable for: Steel, Aluminum(medium and hard grades)

Application:

Fillet weld grinding, chamfering, deburring
• Recommendation for Use: The best results are achieved on high-performance angle grinders.
• Available in two thicknesses:
• Medium for fillet weld widths > 3/16″(5 mm)
• Large for fillet weld widths > 5/16″ (8 mm)

EDP: 67381

Diameter (Inches): 4-1/2

Thickness (inches): 5/8

Thickness (mm): 16

Arbor Hole / Thread Size: 7/8 A.H.

GRIT: 60

MAX RPM: 13,300

Radius Size: Large

For Fillet Weld Width: Large > 5/16″ (8mm)
