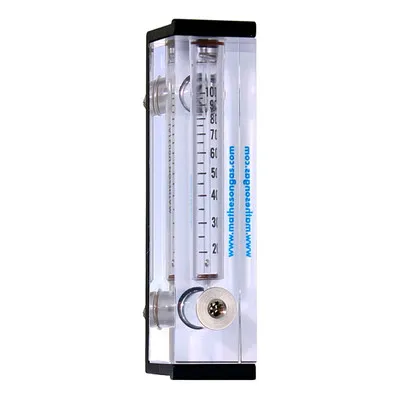

Matheson’s PG-1000 Series Flowmeters are designed to allow reliable flow indication of gases at low capacities, while maintaining a rugged, economical plastic construction. A glass metering tube ensures dependable, accurate performance throughout the meter’s capacity range.
The PG-1000 Series flowmeters are direct reading for air, and are available in either English or Metric units. Choose between a black glass or stainless steel float. The superior construction features of the PG-1000 Series Flowmeters result in a sturdy design with optimum gas metering characteristics. Complete annealing during production ensures each meter body is stress free. Threadless plastic blocks eliminate crazing and fracture, and the metal support frame absorbs all connection strain.
The glass metering tube is sealed directly into the acrylic body by means of a spring-loaded O-ring, and is interchangeable. The scale is permanently fused on the metering tube, close to the flow area, to reduce parallax and improve readout.
Valve Options
• Utility valve for those who desire control as well as indication
• No valve for those who just want indication
| Tube No. | Air (SCFH)* | Tube No. | Air (SCCM)* | Float Material | ||||||
| U005 | 0.01-0.06 | U001 | 2.5-25 | Glass | ||||||
| U006 | 0.02-0.1 | U002 | 5-50 | Glass | ||||||
| U007 | 0.02-0.18 | U003 | 20-100 | Glass | ||||||
| U008 | 0.1-0.4 | U004 | 50-200 | Stainless Steel | ||||||
| U203 | 0.1-1 | U201 | 50-500 | Glass | ||||||
| U204 | 0.2-2 | U202 | 100-1000 | Stainless Steel | ||||||
| (SLPM)* | ||||||||||
| U305 | 0.2-4.4 | U301 | 0.1-2 | Glass | ||||||
| U306 | 1-6 | U302 | 0.2-3 | Stainless Steel | ||||||
| U307 | 1-8 | U303 | 0.2-4 | Stainless Steel | ||||||
| U308 | 1-10 | U304 | 0.5-5 | Stainless Steel |
*All air flow rates at 70°F and 14.7 psia
• Precision tapered glass metering tube
• Reduced scale parallax
• Removable tube for capacity change
• 50mm scale length
• Low end flow measurement of 0.06 SCFH
• 10 to 1 or greater meter range
• Low pressure drop
• Meter support frame flanges allow variety of panel mounting positions
• Wetted End Plugs and Valve Parts: Brass
• Seal Materials: Buna-N
• Valve Stem: 316 stainless steel
• Meter Block: Clear, cast acrylic plastic with removable glass metering tube
• Piping Connections: Brass
• Float Material: Black glass or 316 stainless steel
• Scale: Permanently screened on meter body, length 50 mm
• Pressure Rating: 100 psi maximum
• Temperature Rating: 160°F maximum
• Accuracy: ±10% of full scale flow rate
• Repeatability: 1% of scale reading
• Range: 10 to 1, i.e., 100% to 10% of full scale
• Scale Readings: Direct reading (air)
• Shipping Weight: 1 lb
