Availability: 9 in stock

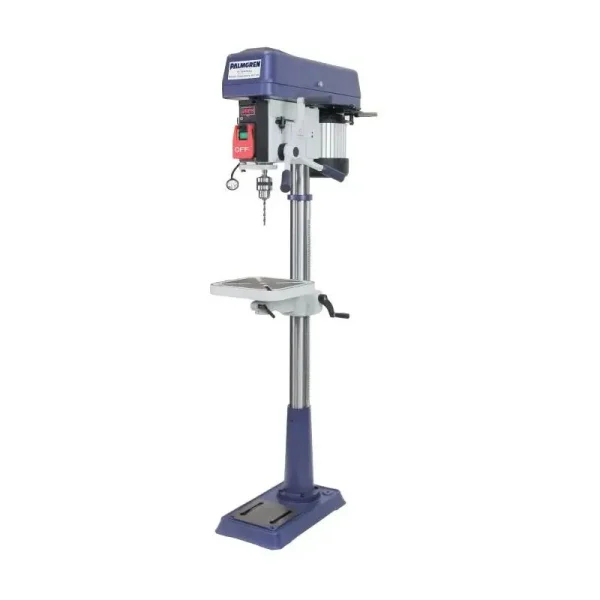

Palmgren’s step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.
| AMPS | 8.6/4.3 |
|---|---|
| Capacity Cast Iron | 5/8 in. |
| Country Of Origin | CN |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Motor HP | 1/2 |
| Overall Dimensions (LxWxH) | 68 in. H x 15 in. W x 28 in. D |
| Phase | Single |
| RPM | 138 – 3476 |
| Spindle Taper | MT2/JT3 |
| Spindle Travel | 5 |
| Swing | 15 in. |
| Table Dimensions | 11-1/2 in. x 11-1/2 in. |
| Table Slots | 5/8 in. |
| Voltage | 120/240 |
| Warranty | 3 Year |
| UPC | 726896801582 |
| Unit Of Measure | Each |
| Product Height (In) | 10.5 |
| Product Length (In) | 56.3 |
| Product Width (In) | 25.6 |
| Product Weight (Lbs) | 204 |
