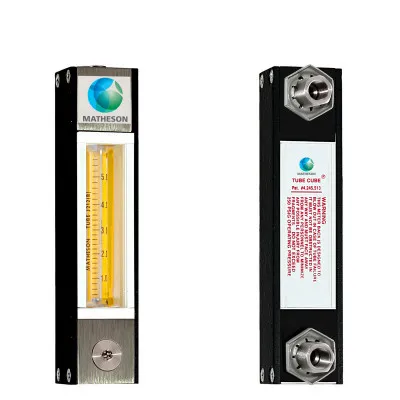

MZ1MG161J645 Special FM-1000 Flowmeter, Stainless Steel

Special FM-1000 Rotameter. Stainless steel construction with CHEMRAZ SC513 O-rings.

Note: Image not representative of actual Z1MG161J645 Rotameter.

Valve Options
• Valve plug (no valve) for those who just want indication

Design Features

• Rugged, compact design
• Precision tapered, fluted metering tube
• Low pressure drop for increased flow rates at low feed pressures
• Corrosion resistant: 316 stainless steel with CHEMRAZ SC513 seals

Materials of Construction

• Wetted End Blocks, Fittings and Internal Parts: 316 stainless steel
• Seal Materials: CHEMRAZ SC513
• Metering Tube: Borosilicate glass
• Piping Connections: 316 stainless steel
• Float Materials: 316 stainless steel
• Scale: Ceramic ink on glass tube

Specifications

• Pressure Rating: 250 psig maximum
• Temperature Rating: 250°F maximum
• Accuracy: ±5% of full scale flow rate
• Repeatability: 0.25% of scale reading
• Range: 10 to 1, i.e., 100% to 10% of full scale
• Scale Readings: Direct reading air (special other scales available)
• Shipping Weight: 1 lb
