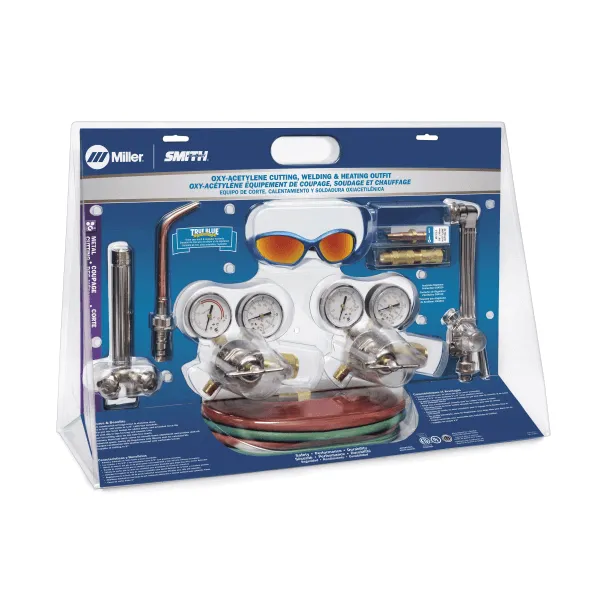

Miller – Smith Toughcut
Medium Duty Acetylene Outfit, CGA 300 MB54A-300
Versatile Toughcut outfits include many features found on more expensive outfits. The Toughcut series is perfect for a multitude of applications such as farm, ranch, hobby, automotive, refrigeration, light fabrication, and repair. Outfits feature rugged, reliable Series 30 medium-duty regulators, accessories and can cut up to 6” with optional tips.
Overview of Parts Included:
Cutting Tip
- Graf-Tite® soft seats Resilient Graf-Tite® seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
- In-tip mix Each tip is a precision-engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
- Slip-in tip design After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage the use of the right tip for the job.
- Removable high-pressure seat Allows cleaning from the back of the tip.
Torch Handles
- Internal threads Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
- Double-tube handles Tube-within-a-tube design provides strength while reducing weight. The internal tube is silver brazed for extra protection, strength and leak resistance.
- Adjustable valve resistance Special PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the individual preference.
- Stainless steel ball-style valves Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
- Replaceable hose connections are easily replaced if damaged.
Cutting Attachment
- Slip-in cutting tips Save time when changing tips — no wrench needed. Resilient Graf-Tite® seat material protects tip from nicking and maintains positive seating. Requires less replacement than metal-to-metal seat designs.
- Three-tube construction Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
- Ease-on oxygen cutting valve Allows smooth piercing and keyhole free starts and restarts.
- Triple o-ring seal Provides positive gas seal and allows rotation.

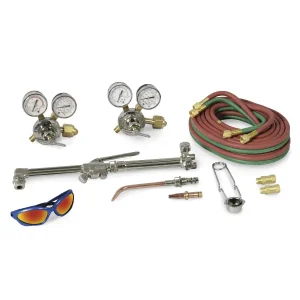

What’s Included:
- Torch Handle (CS5A)
- Cutting Attachment (CC509P)

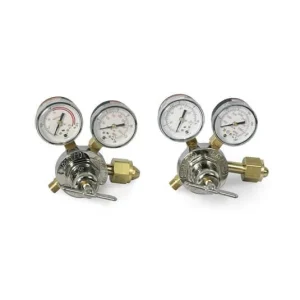

- Oxygen Regulator (30-100-540)
- Acetylene Regulator (30-15-300)
- Cutting Tip (MC12-1)
- Welding tip (MW205)

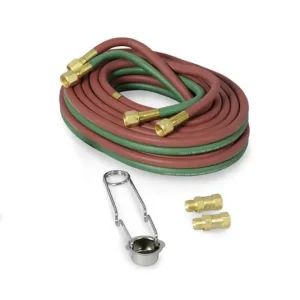

- 20-ft 3/16″ Twin Hose (RL935)
- Friction Lighter (16571)
- Safety Glasses (78000)
- Regulator Mount Check Valves (H698)
- Operations Manual
