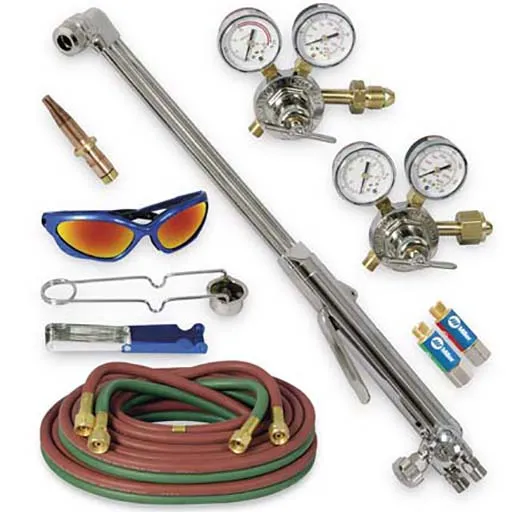

Miller Cutting and Heating Torch Outfit – Heavy
Complete oxy-fuel hand cutting system built for the toughest jobs. The high capacity one-piece torch can cut up to 12-inch thick steel using Acetylene or 20-inch thick steel using Propane with the appropriate tip
Features
Slip-in Cutting Tips Save time when changing tips – no wrench needed. All tips are hand tighten to reduce thread wear and operator fatigue.
Ease-on Cutting Oxygen The cutting torch provides exceptionally smooth application of cutting oxygen reducing keyholing and slag blowback without sacrificing extremely high cutting capacity.
Filtered Replaceable Hose Connections Connections are easily replaced if damaged. Filters keep debris from entering the cutting mechanism and high-pressure seat for longer service.
Reversible Cutting Lever Cutting lever comes mounted at the bottom but can be moved to the top if preferred by the operator for ease of use. Special PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the operator preference.
Adjustable Valve Resistance Special PTFE packing on the torch handle provides a gas-tight seal while allowing the “drag” to be adjusted to the operator preference.
Stainless Steel Regulator Diaphragm Resists corrosion, leaking and freeze-ups for extended service life.
Shatter-Resistant Gauge Lenses Regulators feature 2.5 inch corrosion-resistant polished brass gauges with shatter-resistant polycarbonate lenses
Dual Filters Including Sure Seat The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
SC12 Series Heavy Duty Cutting Tips Preheat cutting tips for general hand and machine cutting with acetylene gas. This series provides excellent preheat characteristics required for machine cutting. SC12-1 can cut from 1/2 in. (13mm) to 5/8 in. (16mm) metal thickness. SC12-2 can cut from 3/4 in. (19mm) to 1-1/4 in. (32mm) thick metal. In-Tip Mix
Each cutting tip is precision engineered mixer for combining preheat oxygen and fuel gas for maximum efficiency. The small volume of mixed gas at the tip adds resistance to flashback, far downstream and away from the operator for safety.
Heavy Duty Cutting Torch Built with super-tough brass forged heads to reduce warping and distortion for more severe applications in construction, shipyards and salvage industries. Cuts up to 12-inch (305 mm) thick steel. Slip-In Design
Tips are slip-in and hand-tightened saving time and minimizing operator fatigue when changing tips. Quick and easy tip changes encouage use of the right tip to efficiiently complete the job.
Three-tube Design Features a three-tube construction which keeps gases separated, eliminating mixing tube burnout and keeping the operator safe. The thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength. Nickel-plated to deflect heat.
