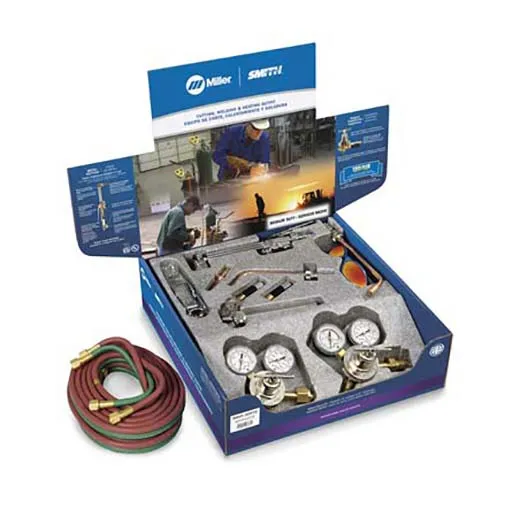

Miller Combination Torch Outfit – CGA 510 – Acetylene/Propane Tip
Series 30 single-stage regulators are extremely durable and contain our exclusive Sure Seat filtered seat technology for extended seat and regulator life. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime. These highly accurate regulators are manufactured with a rugged forged body, corrosion-resistant bright nickel-plated bonnet and a highly durable neoprene composite diaphragm
Features
Double-Tube Design – The Tube-within-a-tube design of the torch handle provides strength while reducing weight. It is Silver brazed for extra protection against leaks and allows high gas flow for a wider range of large tips for cutting, heating, welding and brazing.
Internal Threads – Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
Adjustable Valve Resistance – Special PTFE packing on the torch handle provides a gas-tight seal while allowing the “drag” to be adjusted to the operator preference.
Stainless Steel Ball-Style Valves – Corrosion-resistant balls and brass seating surfaces on the torch handle provide gall resistance and positive, chatter-free seating. Riveted knobs are also featured for secure joints on the valve stem.
Built-in Flo-TrolTM Valve – Eliminates seat burn out by stopping the reverse flow of fuel gas when system is low on oxygen
Slip-in Cutting Tips – Save time when changing tips – no wrench needed. All tips are hand tighten to reduce thread wear and operator fatigue.
Triple O-Ring Seal – The triple o-ring seal provides positive gas seating and allows 360° head rotation eliminating hose resistance during operation.
Universal Pre-Heat Valve – Streamline design for easy access to the pre-heat valve by right or left-handed operator
Ease-on Cutting Oxygen Valve – Allows for smooth application of cutting oxygen reducing keyholing and slag blowback when piercing.
Dual Filters Including Sure Seat – The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
Auto-resetting Relief Valve – The regulators are built with external relief valve that releases damaging excessive pressure. It automatically reset after discharging high pressure surge.
Nickel-Plated Bonnet – The forged brass bonnet body is nickel-plated to protects against corrosion.
Durable Diaphragm – Series 30 Medium Duty regulators have a diaphragm made of highly durable neoprene composite.
Shatter-Resistant Gauge Lenses – Series 30 Medium Duty Regulators feature easy to read 2″ painted steel gauges with shatter-resistant polycarbonate lenses.
In-Tip Mix – Each cutting tip is precision engineered mixer for combining preheat oxygen and fuel gas for maximum efficiency. The small volume of mixed gas at the tip adds resistance to flashback, far downstream and away from the operator for safety.
Graf-TiteTM Soft Seat – This high pressure seat material protects tip from nicking to maintain positive seating for longer tip use. The compressible soft seat can withstand extremely high temperatures resulting in less tip replace metal-to-metal seat design.
Heavy-Wall Copper Welding Tip Design – Heavy-wall copper gives greater resistance to reflected heat, permits cooler operation, and dissipates more heat. Heat-absorbing tips provide longer life, and the long straight-away design permits tip refacing after excessive wear or abuse.
Slip-In Design – Tips are slip-in and hand-tightened saving time and minimizing operator fatigue when changing tips. Quick and easy tip changes encouage use of the right tip to efficiiently complete the job.
Three-tube Design – Features a three-tube construction which keeps gases separated, eliminating mixing tube burnout and keeping the operator safe. The thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength. Nickel-plated to deflect heat.
Medium Duty Cutting Attachment – Cuts up to 6-inch thick steel
MC12 Series Medium Duty Cutting Tips – Slip-in cutting tips for general medium-duty hand cutting. Use with medium pressure acetylene and oxygen.
MC12 can cut from 1/4 in.(6mm) to 5/8 in.(16mm) thick metal.
MC40 Series (Two Piece) Medium Duty Cutting Tips
Two-Piece medium preheat cutting tips for hand cutting with propane and propane-based fuel gases. MC40-1 can cut from ½ in.(13mm) to 5/8 in.(16mm) metal thickness.
