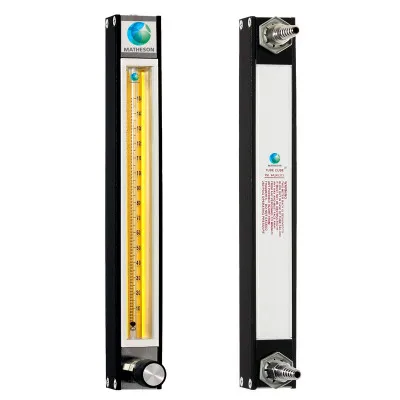

ME11AD01E440 Special FM-1050 Flowmeter

Special FM-1050 Rotameter. Aluminum construction with Buna-N seals. Flow tube is 0.2-2 SLPM-Air

Note: Image not representative of actual Rotameter.

Valve Options
• Utility valve on inlet

Design Features

• Precision tapered, fluted metering tube
• Low pressure drop for increased flow rates at low feed pressures

Materials of Construction

• Wetted End Blocks, Fittings and Internal Parts: Aluminum
• Seal Materials: Buna-N
• Metering Tube: Borosilicate glass
• Float Materials: Glass and Tantalum
• Scale: Ceramic ink on glass tube

Specifications

• Pressure Rating: 250 psig maximum
• Temperature Rating: 250°F maximum
• Accuracy: ±5% of full scale flow rate
• Repeatability: 0.25% of scale reading
• Inlet: 1/8″ FNPT
• Outlet: 3/16″-3/8″ tapered hose barb
• Scale: 0.2-2 SLPM-Air
