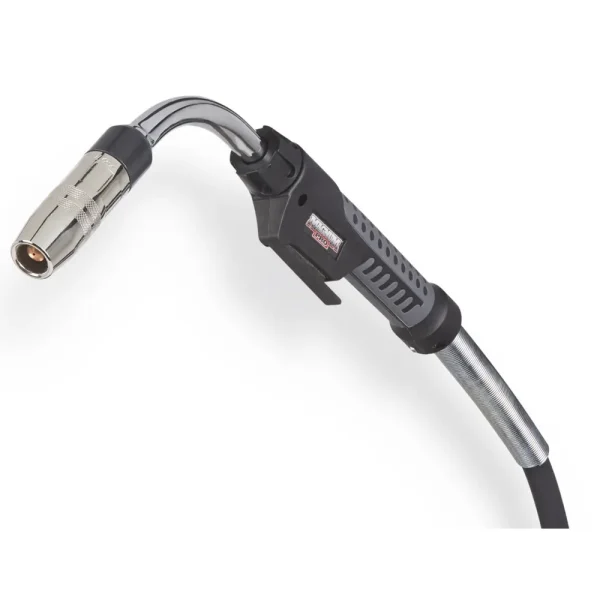

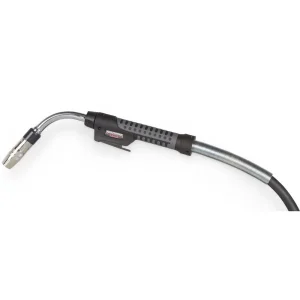

Lincoln Magnum PRO Barrel HDE 350 MIG Gun (No Connector) K4857-2

Lincoln® Magnum® PRO Barrel HDE 350 MIG Gun K4857-2

Genuine Lincoln® Magnum® PRO Barrel HDE 350 is a 350 amp, 15 foot replacement MIG gun. The unique HDE (Heavy Duty and Ergonomic) design provides maximum comfort while delivering superior performance. The PRO Barrel HDE 350 is rated for 350 amps at a full 100% duty cycle using CO2 shielding gas. Turn the gun tube 180 degrees, and the straight barrel handle can be used as a trigger-on-top of the welding gun, giving you increased versatility.

It’s heavy duty construction features Lincoln’s over-molded handle for a slim, balanced grip. The Magnum Pro Barrel HDE 350 uses Lincoln’s premium Magnum long-life MIG consumables. It comes with 1/16 diameter consumables and is capable of feeding .035 to 5/64 diameter welding wire.

PLEASE NOTE: Gun connector and gun liner must be ordered separately.

Processes
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-cored (FCAW)

Features

• Heavy Duty Construction
• 100% duty cycle
• High quality copper parts ensure superior electrical contact and heat dissipation.
• Four trigger leads are standard for fast field repair.
• Increased versatility with a trigger that rotates 180 degrees.
• Patent-pending Anti-Seize tip and diffuser thread design reduces tip and diffuser seizing.
• Lincoln Electric Copper Plus Contact Tips – Larger tip diameter and mass improve heat dissipation to increase tip life.
• Tool-less rotating gun tube allows any number of hand positions to reduce fatigue or fit into tight spaces.
• Simplified Expendable Parts Selection – 350A and 550A consumables are interchangeable across all gun models.
• Ships with 350A parts.
• Wire Diameter Range – 0.35-5/64 in
