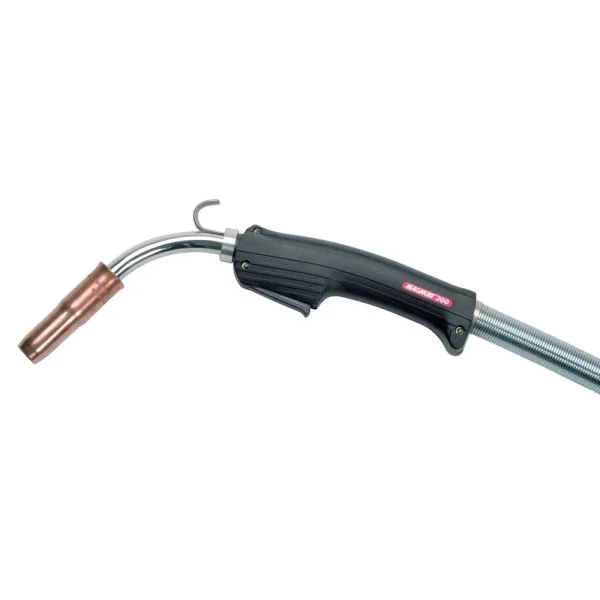

Lincoln K470-1 Magnum® 300 Welding Gun, .035-.045 Liner
MIG Guns & Spool Guns

Lincoln K470-1 Magnum® 300 Welding Gun, .035-.045 Liner

Original price was: $627.29.Current price is: $101.82.

Availability: 7 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: K470-1
CATEGORY: MIG Guns & Spool Guns
Description

Lincoln K470-1 Magnum® 300 Welding Gun, .035-.045 Liner

SEMIAUTOMATIC GAS-SHEILDED GUNS

Magnum® guns for MIG or flux-cored welding feature our classic curved handle and are available in a number of amperage ranges for use in many applications.

  • Requires Gun Connector Kit

Processes

  • MIG, Flux-Cored Gas-Shielded

Wire Diameter Range

  • .025″ – 5/64″ (0.6 – 2.0 mm)

Features and Benefits

POPULAR MAGNUM® GUN

  • Intended for most .035″ – .045″ (0.9 – 1.1 mm) wire diameter applications in job, shops, production or manufacturing

ONE-PIECE MODULAR TRIGGER ASSEMBLY

  • Molded out of high heat resistant material to withstand head and spatter and ensure long life

GUN TUBE DESIGN

  • Armored with an electrically insulated metal jacket optimizing fine wire welding performance

ABRASION-RESISTANT, EXTRUDED RUBBER JACKET

  • Adds strength and long life to the cable

CLASSIC CURVED HANDLE

  • Lightweight and balance, providing a comfortable grip to reduce fatigue

ROTATING GUN TUBE AND GUN HANGER CLIP

  • Allow any number of hand positions to reduce fatigue or fit into tight spaces

Specifications

K470-1 K470-2
DUTY CYCLE AT RATED AMPERAGE 60 60
RATED AMPERAGE 300 300
GUN TYPE Handheld Handheld
CABLE LENGTH 10 ft (3.0 m) 15 ft (4.5 mm)
WIRE DIAMETER .025″ – 5/64″ (0.6 – 2.0 mm) .025″ – 5/64″ (0.6 – 2.0 mm)
COOLING Air Cooled Air Cooled

Included

  • Contact Tip
  • Gas Diffuser
  • Gas Nozzle
  • Insulator
  • Cable Liner
  • Gun Tube (60°)

Accessories

CATEGORY PRODUCT NUMBER PRODUCT NAME
General K466-1 Lincoln LN-7-8-9 & LN-25 Series Connector Kit
General K466-10 Lincoln LF-72-74, LN-25 Pro, Power Feed 25M Connector Kit
General K466-2 Lincoln Tweco No. 2, No. 3, No. 4 Gun Connector Kit
General K466-6 Lincoln Power MIG & Power Wave C300 Gun Connector Kit
General K466-8 Lincoln LN-8-9-1/16 & Larger Gun Connector Kit
General K466-3 Lincoln Miller Feed Gun Connector Kit

Contact Tips

PRODUCT NUMBER PRODUCT NAME
KP14-25 Lincoln .025″ Contact Tip
KP14T-25 Lincoln .025″ Tapered Contact Tip
KP14-30 Lincoln .030″ Contact Tip
KP14T-30 Lincoln .030″ Tapered Contact Tip
KP2010-3B1 Lincoln .030″ Notched Contact Tip
KP14-35 Lincoln .035″ Contact Tip
KP14H-35 Lincoln .035″ Heavy Duty Contact Tip
KP14T-35 Lincoln .035″ Tapered Contact Tip
KP2010-4B1 Lincoln .035″ Notched Contact Tip
KP14-40 Lincoln .040″ Contact Tip
KP14H-40 Lincoln .040″ Heavy Duty Contact Tip
KP14T-40 Lincoln .040″ Tapered Contact Tip
KP14-45 Lincoln .045″ Contact Tip
KP14H-45 Lincoln .045″ Heavy Duty Contact Tip
KP14T-45 Lincoln .045″ Tapered Contact Tip
KP14A-364 Lincoln 3/64″ Contact Tip
KP14AH-364 Lincoln 3/64″A Heavy Duty Contact Tip
KP2010-5B1 Lincoln 3/64″ Notched Contact Tip
KP14-52 Lincoln .052″ Contact Tip
KP14H-52 Lincoln .052″ Heavy Duty Contact Tip
KP14T-52 Lincoln .052″ Tapered Contact Tip
KP14-116 Lincoln 1/16″ Contact Tip
KP14H-116 Lincoln 1/16″A Heavy Duty Contact Tip
KP14T-116 Lincoln 1/16″ Contact Tip
KP14-564 Lincoln 5/64″ Contact Tip
KP14H-564 Lincoln 5/64″ Heavy Duty Contact Tip

Nozzles

PRODUCT NUMBER PRODUCT NAME
KP24A-37-SS Lincoln .375″ Slip-On Recess Gas Nozzle
KP23-37 Lincoln .38″ Fixed Recess Gas Nozzle
KP23T-37 Lincoln .38″ Fixed Tapered Gas Nozzle
KP24A-50 Lincoln .50″ Adjustable Slip-On Gas Nozzle
KP24A-50-SS Lincoln .50″ Slip-On Recess Gas Nozzle
KP23-50 Lincoln .50″ Fixed Recess Gas Nozzle
KP23-50F Lincoln .50″ Flush Gas Nozzle
KP24A-62 Lincoln .62″ Adjustable Slip-On Gas Nozzle
KP24A-62-SS Lincoln .62″ Slip-On Recess Gas Nozzle
KP24CT-62-R Lincoln .62″ Coarse Thread 1/4″ Tip Recessed Nozzle
KP24CT-62-S Lincoln .62″ Coarse Thread 1/8″ Tip Recessed Nozzle
KP23-62 Lincoln .62″ Fixed Recessed Gas Nozzle
KP23-62F Lincoln .62″ Fixed Flush Gas Nozzle
KP23H-62 Lincoln .62″ Fixed Heavy Duty Gas Nozzle
KP24CT-75-R Lincoln .75″ Coarse Thread 1/4″ Tip Recessed Gas Nozzle
KP24CT-75-S Lincoln .75″ Coarse Thread 1/8″ Tip Recessed Gas Nozzle
KP23-75 Lincoln .75″ Fixed Recessed Gas Nozzle

Diffusers

PRODUCT NUMBER PRODUCT NAME
KP2024-2 Lincoln Gas Diffusers for Magnum 300 (.025″ – .030″ Liners)
KP54A Lincoln .025″ – 5/64″ Gas Diffuser for Magnum Gun

Insulators

PRODUCT NUMBER PRODUCT NAME
KP34A Lincoln Insulator for Adjustable Slip Nozzle
KP34CT Lincoln Coarse Thread Insulator Assembly

Liners

PRODUCT NUMBER PRODUCT NAME
KP42-25-15 Lincoln .025″ – .030″ Cable Liner (15 ft)
KP44-116-15 Lincoln .052″ – 1/16″ Cable Liner (15 ft)
KP44-116-25 Lincoln .052″ – 1/16″ Cable Liner (25 ft)
KP44-3545-15 Lincoln .035″ – .045″ Cable Liner (15 ft)
KP44-3545-25 Lincoln .035″ – .045″ Cable Liner (25 ft)
KP44-564-15 Lincoln 1/16″ – 5/64″ Cable Liner (15 ft)
KP44-564-25 Lincoln 1/16″ – 5/64″ Cable Liner (25 ft)
KP44N-116-15 Lincoln 1/16″ Aluminum Cable Liner for Magnum 300 & 400 (15 ft)

Gun Tubes

PRODUCT NUMBER PRODUCT NAME
KP1928-2 Lincoln 60°, 300 Amp Gun Tube Assembly
KP1929-2 Lincoln 45°, 300 Amp Gun Tube Assembly

Product Information
