Availability: 6 in stock
This gun replaces the old Magnum 250 MIG K3081-2

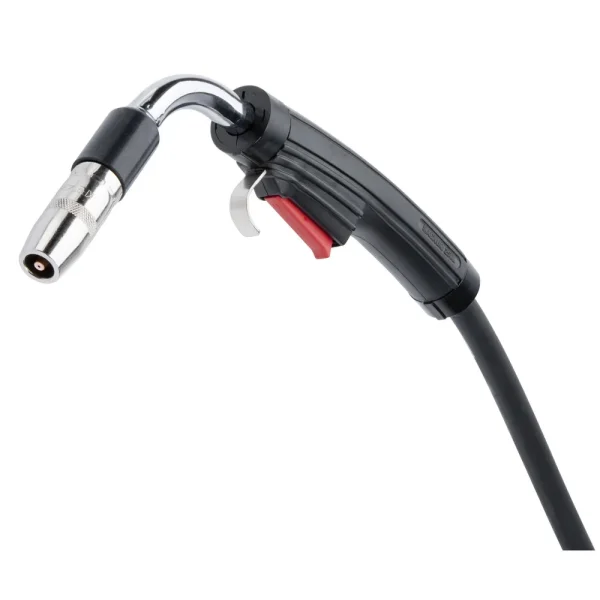

The Magnum PRO 250L is the most durable gun of the Magnum Pro L-series family. With sufficient amperage for bigger jobs, the Magnum Pro 250L is recommended for medium duty job shop and production applications.
Processes
Wire Diameter Range
PREMIUM TIP PERFORMANCE
contact tips help disperse heat, keeping tips cooler and expanding their life threads prevent tips from seizing in the diffuserCOMFORTABLE GRIP
100% DUTY CYCLE
CHROME PLATED GUN TUBE
| RATED AMPERAGE | 250 |
| CABLE LENGTH | 15 ft |
| WIRE DIAMETER | .025″ – .045″ (0.6 – 1.2 mm) |
| NET WEIGHT | 6.27 lb (2.84 kg) |
| DUTY CYCLE AT RATED AMPERAGE | 100% |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2744-025 | Lincoln .025″ Copper Plus 350A Contact Tip |
| KP2744-025T | Lincoln .025″ Copper Plus 350A Tapered Contact Tip |
| KP2744-030 | Lincoln .030″ Copper Plus 350A Contact Tip |
| KP2744-030T | Lincoln .030″ Copper Plus 350A Tapered Contact Tip |
| KP2744-035 | Lincoln .035″ Copper Plus 350A Contact Tip |
| KP2744-035T | Lincoln .035″ Copper Plus 350A Tapered Contact Tip |
| KP2744-040 | Lincoln .040″ Copper Plus 350A Contact Tip |
| KP2744-040T | Lincoln .040″ Copper Plus 350A Tapered Contact Tip |
| KP2744-045 | Lincoln .045″ Copper Plus 350A Contact Tip |
| KP2744-045T | Lincoln .045″ Copper Plus 350A Tapered Contact Tip |
| PRODUCT NUMBER | PRODUCT NUMBER |
| KP2742-1-38R | Lincoln 3/8″ Thread-On 1/8″ Recessed 350A Nozzle |
| KP2742-1-38F | Lincoln 3/8″ Thread-On 1/8″ Flush 350A Nozzle |
| KP2742-1-38S | Lincoln .375″ Thread-On Stickout Nozzle |
| KP2742-1-50R | Lincoln 1/2″ Thread-On 1/8″ Recessed 350A Nozzle |
| KP2742-1-50F | Lincoln 1/2″ Thread-On Flush 350A Nozzle |
| KP2742-1-50S | Lincoln 1/2″ Thread-On Stickout Nozzle |
| KP2742-1-62R | Lincoln 5/8″ Thread-On 1/8″ Recessed 350A Nozzle |
| KP2742-1-62F | Lincoln 5/8″ Thread-On Flush 350A Nozzle |
| KP2742-1-62S | Lincoln 5/8″ Thread-On Stickout Nozzle |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2746-1 | Lincoln Magnum Pro 250L Gas Diffuser |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2773-2 | Lincoln 250A/350A Insulator for Magnum Pro Guns |
| PRODUCT NUMBER | PRODUCT NAME |
| KP42-25-15 | Lincoln .025″ – .035″ Cable Liner, 15 ft |
| KP42-3035-15 | Lincoln .030″ – .035″ Cable Liner, 15 ft |
| KP42-4045-15 | Lincoln .035″ – .045″ Cable Liner, 15 ft |
| KP44N-3545-15 | Lincoln .035 – 3/64″ Aluminum Cable Liner, 15 ft |
| PRODUCT NUMBER | PRODUCT NAME |
| KP3078-60 | Lincoln 60° Gun Tube for Magnum Pro 250L |
| KP3078-45 | Lincoln 45° Gun Tube for Magnum Pro 250L |
**Video from May 2018
