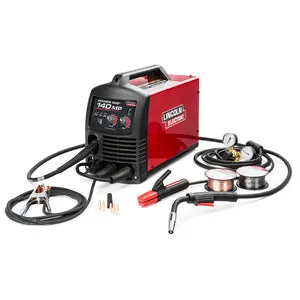

Lincoln K4498-1 Power MIG® 140 MP® Multi-Process Welder
This multiprocess capable unit that is lightweight and portable connects to 120V household power and is an excellent choice for MIG, DC TIG, Stick and Flux-Cored welding.
Features
VERSATILE PERFORMANCE
- Multiprocess unit capable of MIG welding 30-140 amps, DC TIG welding 10-120 amps and Stick welding 25-90 amps
EASY TO USE
- Simple two knob operation for controlling wire feed speed and voltage
- Single button allows for easy process selection changes
COMPACT DESIGN
- Lightweight and portable at 34.5 lbs
- Conveniently plugs into household 120V power
Specifications
| PROCESSES |
- MIG
- Flux-Cored
- Stick
- DC TIG
|
| INPUT POWER |
115/1/60 |
| RATED OUTPUT |
95A/18.75V/60% |
| INPUT CURRENT |
20A |
| OUTPUT RANGE |
30 – 140A |
| SOLID WIRE SIZE RANGE |
.025″ – .035″ (0.635 – 0.9 mm) |
| CORED WIRED SIZE RANGE |
.030″ – .035″ (0.8 – 0.9 mm) |
| WIRED FEED SPEED RANGE |
40 – 500 |
| DIMENSIONS (H x W x D) |
14″ x 10.15″ x 18.6″ (357 x 258 x 472 mm) |
| NET WEIGHT |
35 lb (15.88 kg) |
Included
MAGNUM® PRO 100L GUN
- 10 ft cable assembly with brass connection and 8-pin trigger connector (K530-7)
- .025″ (0.6 mm) tapered contact tips (3 Pack of KH831)
- .035″ (0.9 mm) tapered contact tips (3 Pack of KH833)
- Gasless nozzle for Innershield® welding (KH836)
- Gas nozzle for MIG welding (KH835)
- Spindle adapter for 8″ (203 mm) diameter spools (KH720)
- .025″ – .035″ (0.6 – 0.9 mm) wire diameter dual track drive roll for MIG and flux-cored welding (KP2948-1)
SHIELDING GAS APPARATUS
- Harris® 3000290 Gas Regulator (S25805)
- Harris® 52″ (1.3 m) hose (S19303) for use with Ar/CO2 blend gases
WELDING WIRE
- Sample spool of .025″ (0.6 mm) diameter SuperArc® L-56® premium MIG wire
- Sample spool of .035″ (0.9 mm) diameter Innershield® NR®-211-MP flux-cored wire
OTHER
- Work clamp and 10 ft (3.0 m) cable
- Instruction manual
- Quick Start Guide
- Electrode holder with 10 fit cable for stick welding
Accessories:
| CATEGORY |
PRODUCT NUMBER |
PRODUCT NAME |
| General |
K2275-1 |
Lincoln Welding Cart |
| General |
K1782-16 |
Lincoln PTA-9 TIG Torch |
| General |
K4360-1 |
Lincoln Magnum PRO 100SG Spool Gun |
| General |
K4361-1 |
Lincoln TIG Foot Pedal |
