Description

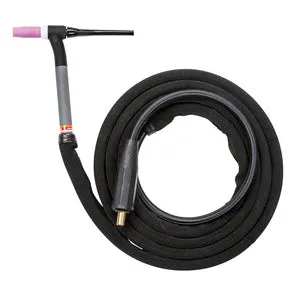

Lincoln K1782 PTA-17F TIG Torch Ready-Pak®

PREMIUM AIR-COOLED TORCHES

Light and easy to use, these torches give you the power of maximum versatility and maneuverability. A molded, knurled handle gives you a sure grip so you can focus on the weld. Whether you are an occasional TIG welder, fabrication shop or production welder, Pro-Torch™ TIG Torches are right for you.

Features & Benefits

  • Meet the performance of the professional
  • Comfortable knurled handle for a non-slip sure grip for precise control of TIG Torch
  • All Pro-Torch™ TIG torches are made from the highest quality materials to assure high performance and long life
  • “F” model torches features flexible heads for significantly greater comfort and access to tight spaces Ultra-Flex™ cables provide ultimate comfort and maneuverability
  • Molded lip/ridge on the torch handle for easy connecting of a zippered cable cover, allows cable cover to be securely attached to torch handle
  • Pre-configured packaged with K1622-1 Twist-Mate™ adapter, cable cover
  • One year Lincoln warranty on torch

Included

  • #7 nozzle
  • 1/16″ (1.6 mm) and 3/32″ (2.4 mm) collets
  • 1/16″ (1.6 mm) and 3/32″ (2.4 mm) collet bodies
  • E3® Tungsten

Specifications

K1782-14 K1782-18
DUTY CYCLE AT RATED AMPERAGE 60% 60%
RATED AMPERAGE 150 150
TUNGSTEN RANGE .020″ – 5/32″ (0.5 – 4.0 mm) .020″ – 5.32″ (0.5 – 4.0 mm)
GUN TYPE Handheld Handheld
CABLE LENGTH 12.5 ft. (3.8 m) 25 ft (7.6 m)
NUMBER OF CABLES 1 1
COOLING Air cooled Air cooled
DIMENSIONS (H X W X D) 2.5″ x 13.5″ x 13.5″ (63.5 x 342.9 z 342.9 mm) 2.5″ x 13.5″ x 13.5″ (63.5 x 342.9 x 342.9 mm)
NET WEIGHT 3.70 lb (1.68 kg) 4.50 lbs (2.04 kg)

Accessories

CATEGORY PRODUCT NUMBER PRODUCT NAME
General K963-3 Lincoln Hand Amptrol™ Rotary Track Style, 6 Pin (25 ft)
