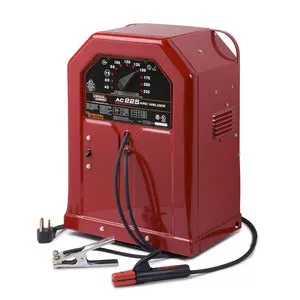

Lincoln K1170 AC225
Stick Welder
The AC225 compact stick welder produces an extremely smooth AC arc for welding a wide variety of materials including carbon, low alloy, and stainless steels as well as cast iron.
Input Power
Processes
Features and Benefits:
EASY TO INSTALL
- Comes with attached 6 ft (1.8m) input power cable and NEMA 6-50P plug
EASY TO OPERATE
- Full range 40-225 amp selector switch quickly sets the welding current and ensures a uniform arc each and every time you weld
SMOOTH ARC
- Makes it easy to weld with different electrodes, including mil steel, low hydrogen, stainless steel and hardfacing electrodes
225 AMP AC OUTPUT
- Is enough for 3/16″ (4.8mm) diameter general purpose mild steel electrodes and 5/32″ (4.0mm) sizes of other electrodes
NEMA RATED, UL LISTED AND CSA APPROVED
Specifications:
| INPUT POWER |
230/1/60 |
| RATED OUTPUT |
225A/25V/20% |
| INPUT CURRENT |
50A |
| OUTPUT RANGE |
40-225A AC |
| DIMENSIONS (H X W X D) |
24″ x 17.25″ x 12″ (610 x 438 x 305 mm) |
| NET WEIGHT |
96 lbs (43.55 kg) |
Included:
- Insulated electrode holder and cable
- Heavy duty work clamp and cable
- Input cable with attached plug
