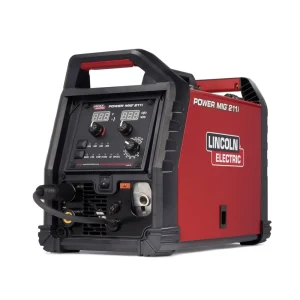

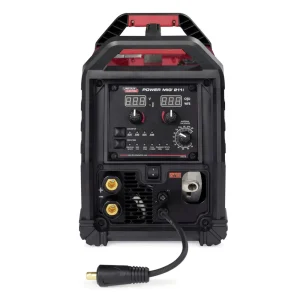

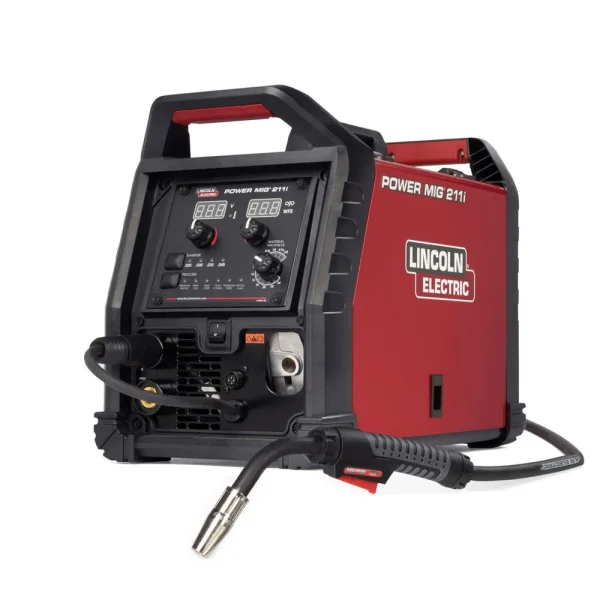

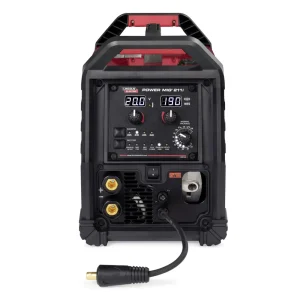

SOLID, DEPENDABLE WELDING. The POWER MIG® 211i MIG welder is a straightforward and dependable machine that’ s ideal for MIG and flux-cored welding. This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly – and when it’ s time to move, the sleek case with multiple lift points make it extremely portable. If you’ re looking for an incredibly simple, reliable MIG welder that won’ t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.
Features
- Simple user interface – Seven segment display with basic knob controls.
- Process Capabilities – MIG, Flux-Cored and Spool Gun.
- Dual Input Voltage – 120V and 230V inputs so you can plug into any common power supply.
- Ergonomic Case – Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
- Lightweight and Portable – Only 41 lbs
What’s Included?
- Magnum® PRO 100L Gun 10 ft. (3.0 m) (K4528-1), 230V to 120V power cord adapter, Work Cable and Clamp, Adjustable Gas Regulator and Hose, Gas Nozzle, Gun Cable Liner (pre-installed in gun), Spindle Adapter, Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631), 0.030-0.035in. (0.8 – 0.9 mm) Drive Roll (Installed), 0.030 – 0.045 in. (0.8 – 1.1 mm) Knurled Drive Rolls, and 0.025 – 0.035 in. (0.6 – 0.9 mm) Wire Guide (Installed)
Specifications
- Country of Origin : Mexico
- Warranty Length : 3 Years
- Welding Technology : Inverter/Chopper
- Input Phase : 1Ph
- Input Voltage Type : Multiple
- Input Hertz : 60
- Output Polarity : DC
- Output Mode : CV
- Max Output : 200-299
- Input Icon : 1 Phase; 60 Hz
- Output Icon : DC; CV; 2-roll
- Equipment Technologies : Analog Communication
- Cooling : Air
- Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) : 120/1/60
- Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) : MIG95A/18.8/60%75A/17.8V/100%
- Phase 1: Input Current at Max Rated Output #1 (Current) : 20A
- Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) : 230/1/60
- Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) : MIG175A/22.8V/30%90A/18.6V/100%
- Phase 1: Input Current at MAX Rated Output #2 (Current) : 22.5A
- Height : 15.5 in
- Product Height (mm) : 394
- Width : 10.75 in
- Product Width (mm) : 273
- Length : 22 in
- Product Length (mm) : 558
- Weight : 41 lb
- Product Weight (kg) : 18.6
- IEC Rating : IP21S
- Max Rating : 211A
- Number of Operators per Machine : 1
- Machines Communication Technology : analog
- Work Lead Connector Type : Dinse
- Work Cable Length : 10 FT
- Spool Gun Compatible (Duty) : Light
- Arclink Connector : No
- Tap or Continuous Control : Continuous
- Work Clamp Included : Yes
- UI Type : Meters
- Wire Feeders Processes : MIG; Flux Cored
- Contact Tips Included : Yes
- Sample MIG Wire Included : Yes
- Input Voltage : 120/230
- Input Current : 120V: 15A, 230V: 15A
- Input Phase : 1
- Input Power : 120/230/1/60
- Mode Icon : CV
- Output Range : 120V: 20-140A DC 230V: 20-211A DC Max. OCV : 76V
- Polarity : DC
- Rated Output : 120V: 95A/18.8/60% 230V: 175A/22.8V/30%
