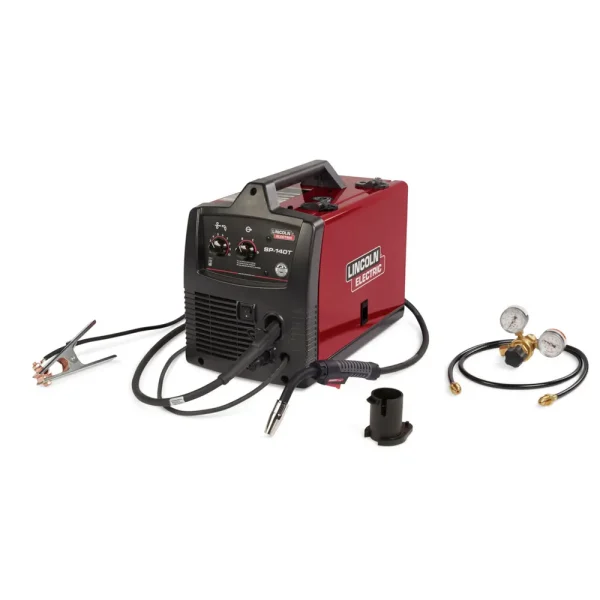

The SP140-T Wire Feeder Welder is designed for project and repair welding at home, on the farm or in an autobody shop. Whether you’re a hobbyist or a seasoned welder, this welding machine is designed to deliver excellent performance and convenience. Featuring a compact and portable design, the SP140-T Welder weighs about 50 pounds, measures 13.65 in. H x 10.38 in. W x 17.9 in. D, and has a durable handle for easy maneuverability. Designed with simple tapped voltage control, precise wire drive, and hassle-free wire spool mounting, this welder is easy to set up and operate, so you can confidently tackle your welding project.
Features
- Superior Arc Performance – Forgiving arc and simple tapped voltage control make dialing in your application easy. Smooth arc starts with minimal spatter. Wide 30-140 amp welding output range.
- Precise Wire Drive – Precision full adjustment drive system reduces chance of wire tangling and crushing. Brass-to-Brass gun connections for enhanced conductivity.
- No Hassle Tool-less Design – Hassle-free wire spool mounting, wire drive service and polarity changes.
- Spool Gun Capable – Add the economical Magnum® PRO 100SG spool gun for enhanced aluminum wire feeding performance.
What’s Included?
- (1) SP-140T Wire Feeder Welder, (1) Magnum® PRO 100L Gun 10 ft (3.0 m), (1) Gas Nozzle, (1) Gas Diffuser, (1) Cable Liner, (1) Contact Tip 0.035 in (0.9 mm), (1) Work Cable and Clamp, (1) Adjustable Gas Regulator and Hose, (1) Spindle Adapter,(1) Smooth Drive Roll 0.025-0.030 in and 0.035 in
Specifications
- Country of Origin : Mexico
- Warranty Length : 3 Years
- Welding Technology : Conventional
- Input Phase : 1Ph
- Input Voltage Type : Single
- Input Hertz : 60
- Output Polarity : DC
- Output Mode : CV
- Max Output : 100-199
- Input Icon : 1 Phase; 60 Hz
- Output Icon : DC; CV
- Cooling : Air
- Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) : 120/1/60
- Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) : 90A/19.5V/20%
- Phase 1: Input Current at Max Rated Output #1 (Current) : 20A
- Height : 13.65 in
- Product Height (mm) : 347
- Width : 10.38 in
- Product Width (mm) : 264
- Length : 17.9 in
- Product Length (mm) : 455
- Weight : 49.5 lb
- Product Weight (kg) : 22.5
- Machines Processes : Flux-Cored (FCAW); MIG (GMAW)
- Wire Feed Speed Range (IPM) : 50-700
- MIG : Yes
- Wire Feeders Processes : MIG; Flux Cored
- Input Voltage : 120
- Input Phase : 1
- Input Power : 120/1/60
- Mode Icon : CV
- Output Range : 30-140A DC
- Polarity : DC
- Rated Output : 90A/19.5/20%
