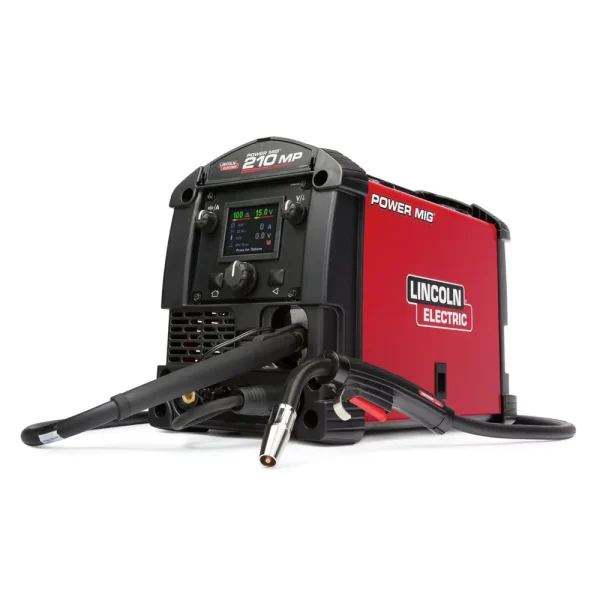

Lincoln Electric K3963-1 POWER MIG® 210 MP® Multi-Process Welder

Original price was: $1,999.00.Current price is: $117.61.

Availability: 6 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: K3963-1
CATEGORY: Welders
Description
LIMITED-TIME OFFER (US Only)! Buy a POWER MIG 210 MP Multi-Process Welder and receive a $500 VISA gift card rebate. View other Buy Red Save Green Rebates Redeem Rebate VERSATILE, RUGGED, SIMPLE TO USE. The POWER MIG® 210 MP® power supply is a multi-process welder for the hobbyist, educator or small contractor who wants to do MIG welding and a lot more, including stick, TIG and flux-cored welding. The push-and-turn digital controls and color display screen make setup and operation intuitive and easy, while the all-metal wire drive and sturdy sheet-metal construction make it rugged and ready for any job in the home or small shop. The POWER MIG® 210 MP® power supply is the ideal MIG machine for the welding novice, with plenty of room to grow as you gain more experience. ONE POWERFUL MACHINE Take it Everywhere, Plug in Anywhere. ™ Lightweight and portable – just 40 lbs.!. Dual Voltage Inputs (120V or 230V) means you can plug into any common power supply. Ready. Set. Weld ® . Intuitive push-and-turn digital controls make setup a breeze. Large color display guides you through the setup process. Advanced options and settings are simple to access. 210 Amps: The power to tackle any job MIG: Weld up to 5/16 in. mild or stainless steel or aluminum* up to 3/16 in. Flux-Cored (Self- and Gas-shielded): Tackle the biggest jobs. DC Stick: Handles up to 5/32 in. stick electrodes. DC TIG: Enabled by Touch Start TIG ® technology. *Spool gun required (sold separately).

Features

What’s Included?

  • POWER MIG 210 MP Multi-Process Welder, K4076-1 Magnum® PRO 175L Gun – 10 ft. (3.0 m),120V and 230V Input Cables, Work Cable and Clamp, Electrode Holder and Lead Assembly, Adjustable Gas Regulator and Hose, Gas and Gasless Nozzles, Gun Cable Liner (Pre-Installed in Gun), Spindle Adapter, Sample Spool of SuperArc® L-56® Mild Steel MIG Wire, Sample Spool Innershield® NR®-211-MP Flux-Cored Wire, 0.025 in (0.6 mm) and 0.035 in (0.9 mm) Contact Tips, 0.025 – 0.030 in and 0.035 in Drive Rolls, 0.030 – 0.045 in Knurled Drive Rolls, 0.025 – 0.035 in and 0.045 in Wire Guides, KP4140-1 Replacement Shield Shield
  • Lightweight and portable just 40 lbs.

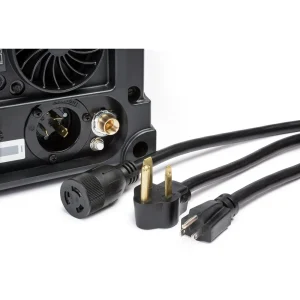

  • Dual Voltage Inputs (120V or 230V) means You can plug into any common power supply.
  • Intuitive push-and-turn digital controls make setup a breeze
  • Large color display guides you through the setup process
  • Advanced options and settings are simple to access

Specifications

  • Country of Origin : Mexico
  • Warranty Length : 3 Years
  • Welding Technology : Inverter/Chopper
  • Input Phase : 1Ph
  • Input Voltage Type : Multiple
  • Input Hertz : 60
  • Output Polarity : DC
  • Output Mode : CC; CV; CC/CV
  • Max Output : 200-299
  • Input Icon : 1 Phase; 60 Hz
  • Output Icon : DC; CC/CV; 2-roll
  • Cooling : Air
  • Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) : 120/1/60
  • Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) : MIG: 100A/19V/40% 75A/17.75V/100%
  • Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) : TIG: 125A/15V/40%90A/13.6V/100%
  • Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) : Stick:80A/23.2V/40%60A/22.4V/100%
  • Phase 1: Input Current at Max Rated Output #1 (Current) : 15A
  • Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) : 230/1/60
  • Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) : MIG:200A/24V/25%110A/19.5V/100%
  • Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) : TIG:175A/17V/30%100A/14V/100%
  • Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) : Stick:175A/27V/25%100A/24V/100%
  • Phase 1: Input Current at MAX Rated Output #2 (Current) : 14.7A
  • Height : 14 in
  • Product Height (mm) : 356
  • Width : 10.75 in
  • Product Width (mm) : 273
  • Length : 19 in
  • Product Length (mm) : 483
  • Weight : 40 lb
  • Product Weight (kg) : 18.14
  • Machines Processes : Stick (SMAW); Flux-Cored (FCAW); TIG (GTAW); MIG (GMAW)
  • Max Rating : 220A
  • Output Range by Mode : 20-220A
  • Number of Operators per Machine : 1
  • Machines Communication Technology : analog
  • Work Lead Connector Type : Dinse
  • Work Cable Length : 10 FT
  • Spool Gun Compatible (Duty) : Light
  • Temperature Rating at Rated Output (deg C) : 40
  • Arclink Connector : No
  • Tap or Continuous Control : Continuous
  • Work Clamp Included : Yes
  • User Interface Type : Display Screen
  • Output Meters : Screen
  • Max OCV : 56V
  • Input Voltage : 115/230
  • Input Current : 15A, 14.7A
  • Input Phase : 1
  • Input Power : 115/230/1/60
  • Mode Icon : CC/CV
  • Output Range : 120V: 20-140A 230V: 20-220A Max. OCV : 56
  • Polarity : DC
  • Rated Output : 120V: 100A/19.0/40% 230V: 200A/24V/25%
